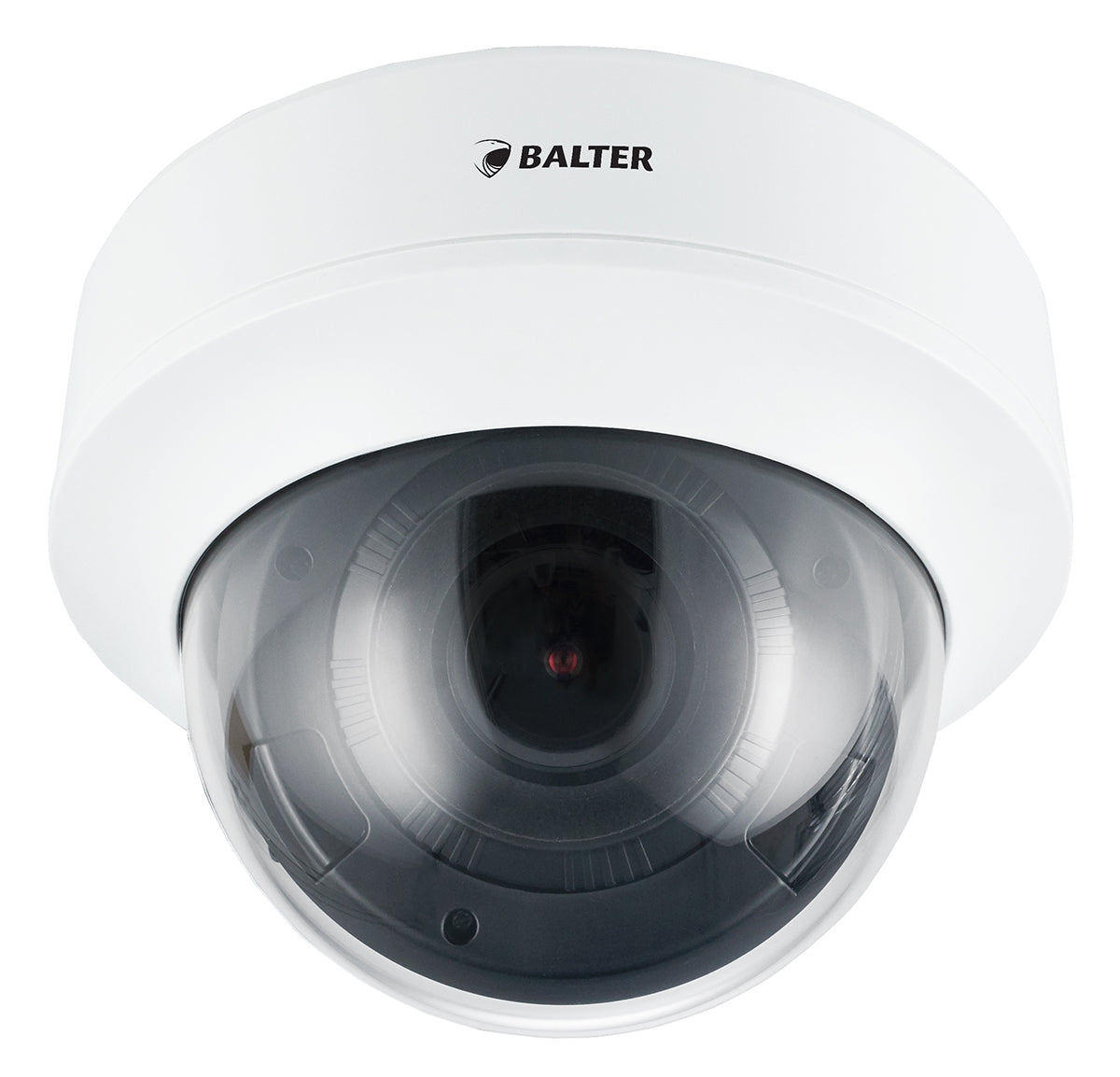

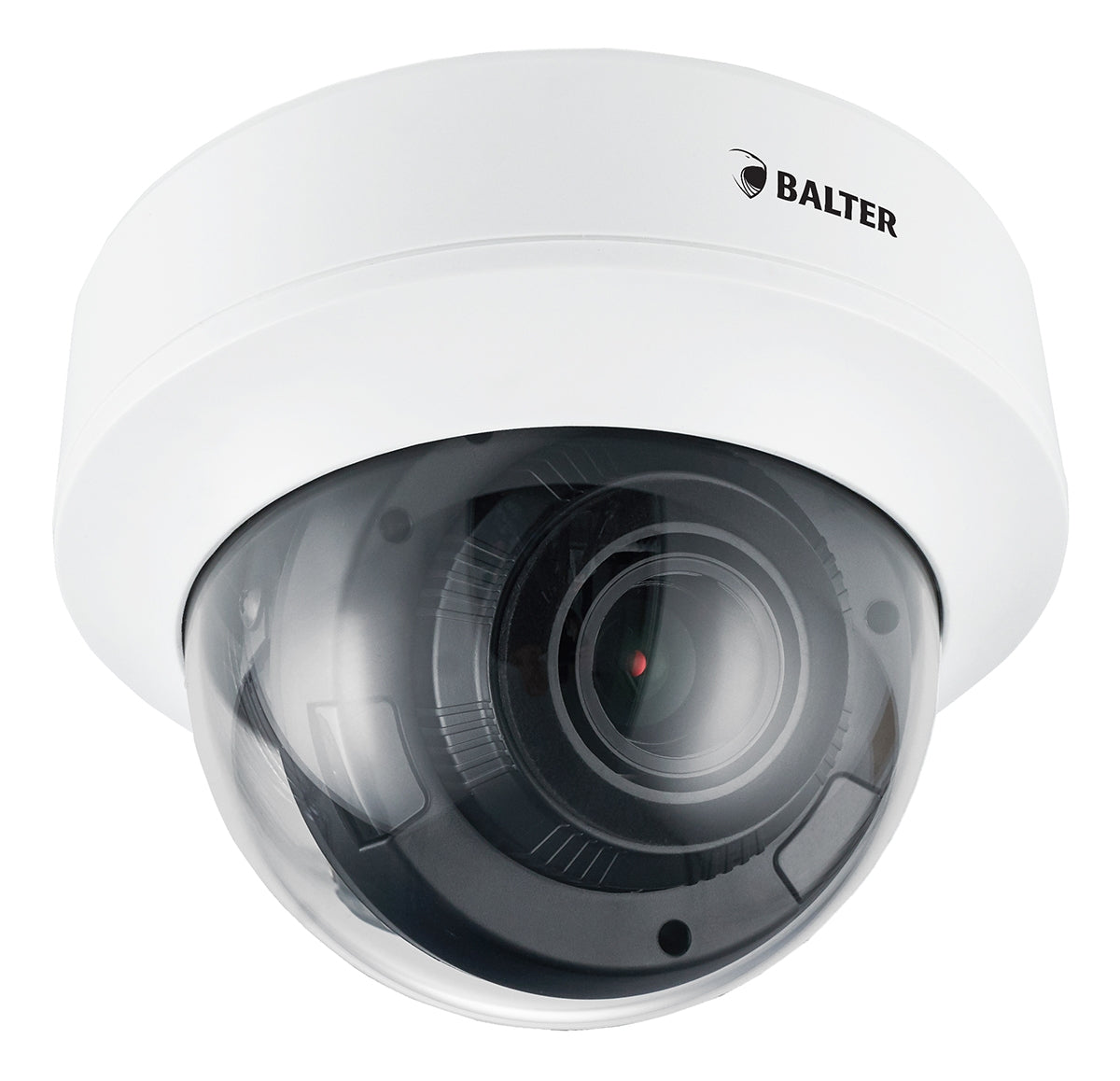

BALTER 5.0MP EXIR Analog HD Dome Camera, 2.8-12mm Motorized Zoom, 30m Night Vision, Smart-IR, 120dB WDR, Privacy Zones, TVI / AHD / CVI / CVBS, 12V DC

The HD-DP5141R is a 5.0 Megapixel TVI / AHD / CVI / CVBS dome camera equipped with powerful EXIR LEDs and a high-resolution 2.8-12mm motorized megapixel lens with autofocus for indoor installation. The two powerful EXIR LEDs provide significantly better illumination in darkness up to a range of 30m.

Additional features of this indoor camera include Wide Dynamic Range with 120dB. With Wide Dynamic Range, objects that would normally only be visible as overexposed or darkened in the image can be clearly identified in both bright and dark areas.

With the 2.8-12mm megapixel motorized zoom lens and progressive scan image sensor, the compact 5.0MP dome camera covers significantly larger areas without compromising image quality. The TVI technology allows the high-resolution video signal to be transmitted directly to a recorder via coaxial cable up to 300m (RG59) or 500m (RG6). The camera offers convenient access to the on-screen menu via the existing coaxial cabling. The control and adjustment of all menu functions take place via a recorder or control unit.

Even extreme temperature fluctuations are no problem for this motorized zoom dome camera. It functions without interruption at both very cold and very hot temperatures from -40°C to +60°C.

5.0 Megapixel Resolution
Due to the high 2560x1944p resolution, even greater detail sharpness is achieved than was the case with Full HD cameras. This allows even more distant objects to be better identified. BALTER TVI cameras deliver images of larger areas without having to accept losses in image quality. The significantly higher depth of field is the key to obtaining usable images even where classic cameras without megapixel resolution can no longer provide usable recordings.

Motorized lens with zoom and focus function
A motorized zoom lens significantly simplifies the installation and commissioning of the camera. The tedious manual adjustment of the lens directly on the camera is no longer necessary. It is sufficient to turn the camera in the desired direction and then conveniently adjust the motorized zoom lens from the DVR. Changing the focal length according to requirements can also be done just as easily and conveniently at a later time.

Wide Dynamic Range 120dB
The ability of a camera to deliver optimal images under extreme lighting conditions is known as Wide Dynamic Range. Especially in situations with strong backlighting, the WDR function is mandatory if images are to be created without area-based overexposure. In combination with the powerful progressive scan CMOS sensor, this TVI camera possesses an outstanding Wide Dynamic Range function with a high dynamic range. Thanks to advanced WDR technology, images no longer appear with color distortion, but instead impress with sensationally good color reproduction and the avoidance of motion blur.

4-in-1 Technology: TVI / CVI / AHD / CVBS
High Definition Video over Coax. TVI / CVI / AHD sends a virtually latency-free 5.0MP video signal over RG59 coaxial cable. All Neostar 4-in-1 cameras and recorders offer the benefits of extremely high video resolution, but can be installed and commissioned as easily as standard analog surveillance systems. The possibility of significantly longer cable runs is also a major advantage of TVI / CVI / AHD systems. These can be used up to 500m (RG6) / 300m (RG59) away from TVI / CVI / AHD recorders.

Smart IR
With Smart IR, clear and sharp images are produced even in poor lighting conditions. Smart IR (smart infrared) automatically adjusts the amount of infrared light used to illuminate a scene. Depending on how close an object moves to the camera, the infrared illumination is increased or reduced to produce an optimal image for as long as possible.

Day/Night (ICR)
BALTER cameras with the Day/Night (ICR) function deliver sharp images even in poor lighting conditions and at night. During the day, the IR cut filter blocks infrared light to produce accurate color images. In poor lighting conditions and at night, the filter is removed and allows infrared light to pass through to deliver razor-sharp, well-defined black-and-white images.

Privacy Masking
Some areas are better left unrecorded. These can be particularly sensitive private areas, but also public spaces. With this camera, you can therefore easily define up to 4 privacy zones: this allows you to mask out up to 4 freely definable areas independently of each other. These masked areas appear neither in the camera's live image nor in the saved recording.

On-Screen Menu Control via Coax
Simple control of TVI on-screen menu settings via coax. This camera offers a user-friendly on-screen menu adjustment function via existing coaxial cabling, which eliminates the need to lay an additional data cable. Control and adjustment can be realized with any BALTER TVI recorder.

3-axis camera mount
This camera can be effortlessly mounted on ceilings and walls. It features an integrated 3-axis camera mount, which allows for flexible installation in numerous locations both indoors and outdoors.
