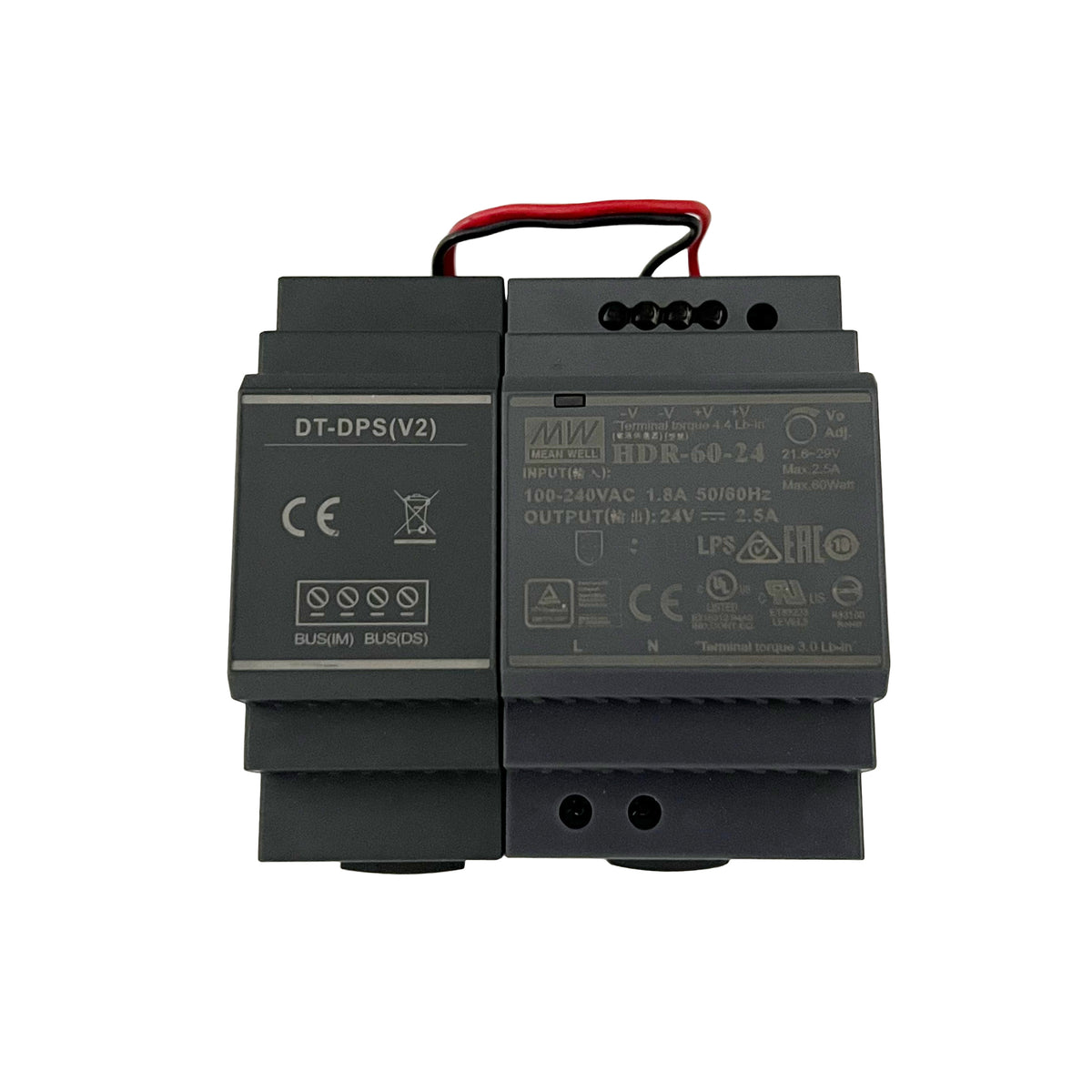

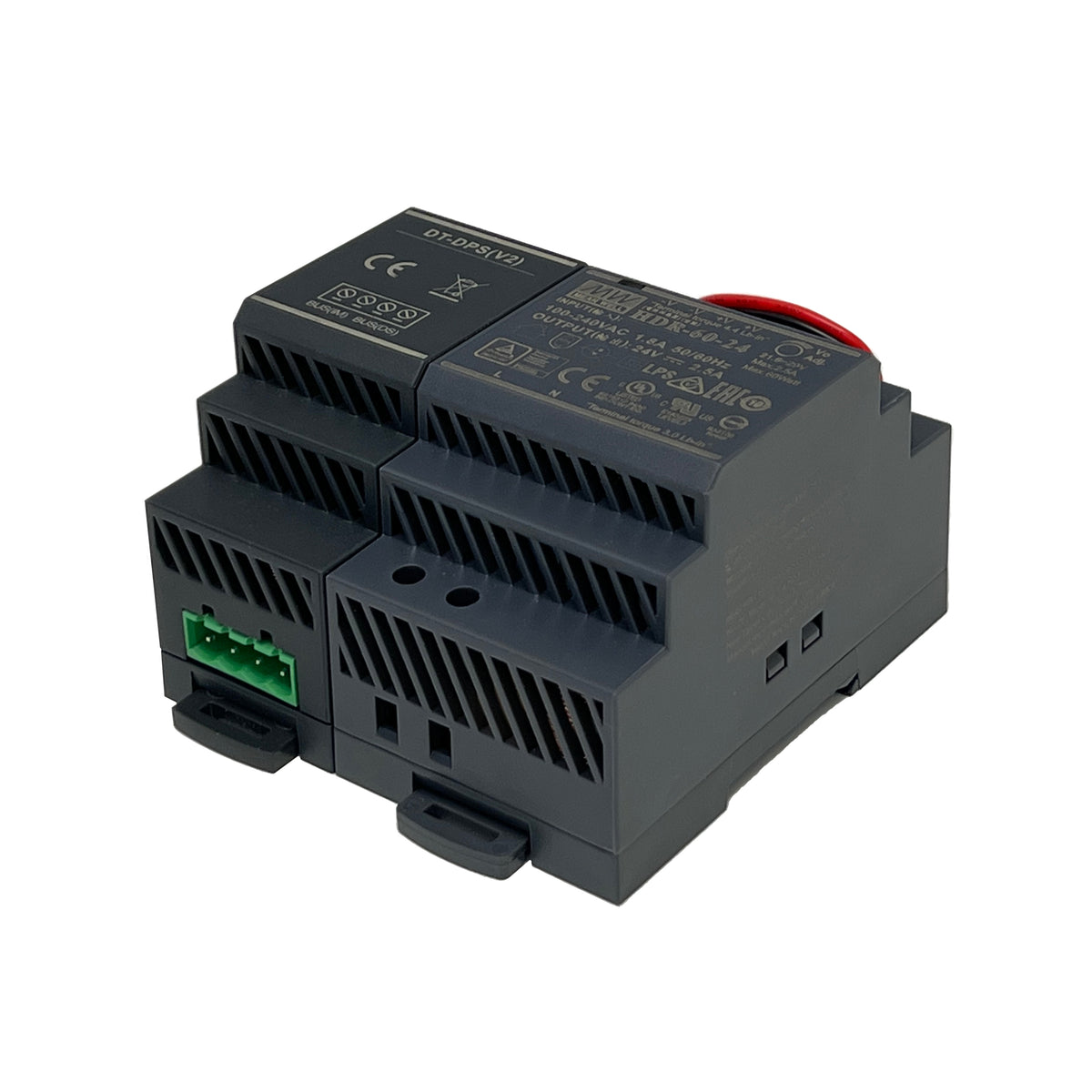

BALTER Hauptstromverteiler, 2-Draht BUS Technologie, Stromversorgung für bis zu 6 Monitore und 2 Türstationen – BUS-C6002H
BALTER Hauptstromverteiler, 2-Draht BUS Technologie, Stromversorgung für bis zu 6 Monitore und 2 Türstationen – BUS-C6002H
Module

BALTER main power distributor, 2-wire BUS technology, power supply for up to 6 monitors and 2 door stations

Item number BUS-C6002H

Main power distribution unit, power supply for 6 monitors + 2 door stations, 2-wire BUS technology, DIN rail mounting, reverse polarity protected, dims: 86x88x58mm, voltage: 24V DC (2.5A)

In stock! Ships within 1-2 business days.

90-day risk-free trial

2-Year Warranty

Complimentary shipping & returns

Designed in Germany

Designed in Germany

Product details

Key details at a glance

Main power distributor
Main power distributor
Power supply for
Power supply for
6 monitors + 2 door stations
6 monitors + 2 door stations
2-wire BUS technology
2-wire BUS technology
DIN rail mounting
DIN rail mounting
Reverse polarity protected
Reverse polarity protected

Description

The BUS-C6002H is a power supply module for the Balter EVIDA 2-wire BUS system and provides power to door stations, video stations, and other modules. At the same time, it serves as a power distributor. It can be used as both a primary and an additional power supply source. It offers the following functions:

-Multi-protection: short circuit, overload, overvoltage
-BUS-PS (power distributor) integrated
-DIN rail mounting
-Replaces a power distributor

Technical data

Modular type
Power supply
Wiring
2-wire BUS
Installation
DIN rail
Input power
100-240V AC, 1.8A
Output power
24V DC, 2.5A
Dimensions
86mm (W) x 88mm (H) x 58mm (D)

What is included

  • BALTER main power distributor, 2-wire BUS technology, power supply for up to 6 monitors and 2 door stations - BUS-C6002H
  • Operating instructions
