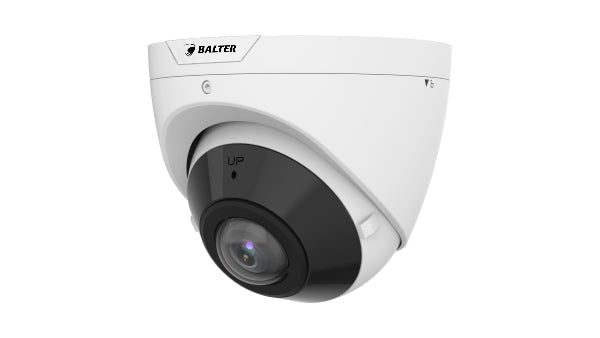

BALTER X PRO IP Fisheye Eyeball Camera with 8MP, 180° wide angle, 3840x2160, 20m night vision, WDR 120dB, Ultra 265, microphone, IP67, IK10, PoE/12VDC
Item number IP-FE45IRP
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 8.0MP (3840x2160p)
- 8.0MP (3840x2160p)
- 1/2.7" CMOS
- 1/2.7" CMOS
- 180° panoramic wide-angle
- 180° panoramic wide-angle
- 30fps at 8.0MP
- 30fps at 8.0MP
- Night vision up to 20m
- Night vision up to 20m
- WDR 120dB
- WDR 120dB
Description
BALTER X PRO IP Fisheye Eyeball Camera with 8MP, 180° wide angle, 3840x2160, 20m night vision, 120dB WDR, Ultra 265, microphone, IP67, IK10, PoE/12VDC
The IP-FE45IRP is a high-performance IP panoramic camera with a 180° wide angle for indoor and outdoor use. It delivers high-resolution 8-megapixel images with excellent detail and smooth video transmission at up to 30 frames per second. Thanks to advanced image processing and 120dB WDR technology, the camera enables clear recordings even in challenging lighting conditions.
With integrated Smart IR illumination, the camera reliably captures objects in the dark at a distance of up to 20 meters. Intelligent video analysis with person and vehicle detection reduces false alarms and ensures precise monitoring. The robust IP67 and IK10-rated housing makes it ideal for demanding outdoor applications.
Technical Data
- IP panoramic turret camera with 8MP resolution (3840x2160)
- 180° wide-angle horizontal field of view
- 1.68mm lens with F2.0 aperture
- 1/2.7" progressive scan CMOS sensor
- Frame rate up to 30fps at 8MP
- Night vision up to 20 meters (Smart IR)
- Wide Dynamic Range (WDR) 120dB
- Supported video formats: Ultra 265, H.265, H.264, MJPEG
- Adjustable dewarping (1–9 levels)
Functions & Features
- Intelligent video analysis:
- Line crossing
- Intrusion / area monitoring
- Entering / exiting zones
- Person and vehicle detection to reduce false alarms
- Motion detection and tampering alarm
- 2D / 3D digital noise reduction (DNR)
- ROI (Region of Interest) and privacy zones
- Digital Defog, BLC, HLC
- Automatic scene adaptation
Audio & Storage
- Built-in microphone
- microSD card slot up to 512GB
- ANR and NAS (network storage) support
Network & System
- ONVIF compatible (Profiles S, G, T)
- Web browser, PC software, and mobile apps
- Triple stream support
Connections & Power Supply
- RJ45 network connection
- PoE (802.3af) / 12V DC
- Power consumption approx. 5.5W
Housing & Protection
- IP67 weatherproof
- IK10 vandal-proof
- Metal housing for outdoor use
- Operating temperature for demanding environments
Technical data
- Camera type
- IP panoramic camera
- Image sensor
- 1/2.7" CMOS
- Resolution
- 8 megapixels
- Frame rate
- 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps
- Resolution scaling
- 3840x2160p (Main Stream) to 352x288p (Third Stream)
- Video compression method
- Ultra H.265, H.265, H.264, MJPEG
- Minimum illumination
- Color: 0.05 lux (F2.4, AGC ON) 0 lux with IR
- Infrared LEDs
- Infrared SMD LEDs, Auto / Manual
- IR LED technology
- 850nm, Smart IR
- Illumination range
- 20 meters
- Dynamic range
- 52dB
- Dynamic range (WDR on)
- 120dB
- Lens
- 1.68 mm
- Lens type
- Fixed
- Viewing angle
- 180° panoramic
- On-screen menu
- Via web interface, CMS and network video recorder
- Day/Night
- Auto (ICR) / Manual
- Overexposure protection
- Smart IR
- Wide Dynamic Range
- 120dB
- Noise reduction
- 2D DNR / 3D DNR
- White balance
- Auto
- Anti-fog
- Digital anti-fog
- Motion detection
- Supported
- Privacy masking
- 4x privacy zones
- Tamper alarm
- Supported
- Web viewer
- Plug-in required for live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in-free live view: Chrome 57+, Firefox 58+, Edge 16+
- Security
- Password protection, strong password, HTTPS encryption, export of operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Languages
- 20 languages
- Microphone
- Included
- Speaker
- Included
- 2-way audio communication
- Supported
- Audio compression
- G.711
- Audio bitrate
- 64 Kbps
- Surge protection
- 4KV
- Vandal resistance
- IK10
- Protection class
- IP67
- Power supply
- PoE / 12V DC
- Power consumption
- Max. 5.6 watts
- Dimensions
- 111 (D) x 93 (H) mm
- Weight
- 480g
What is included
- BALTER X ECO IP Panorama Camera
- Drilling template
- Allen key
- Screw set
- Quick start guide
