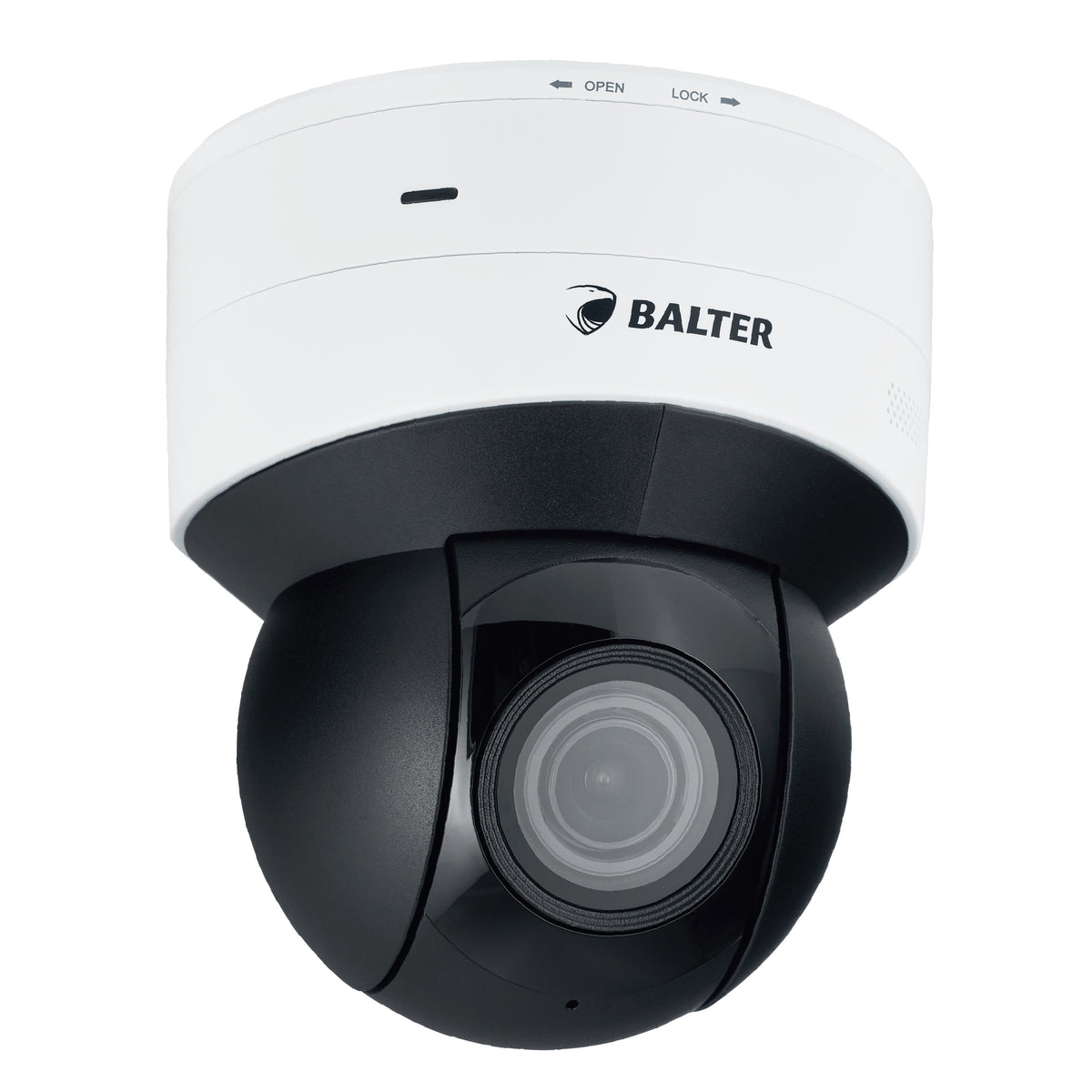

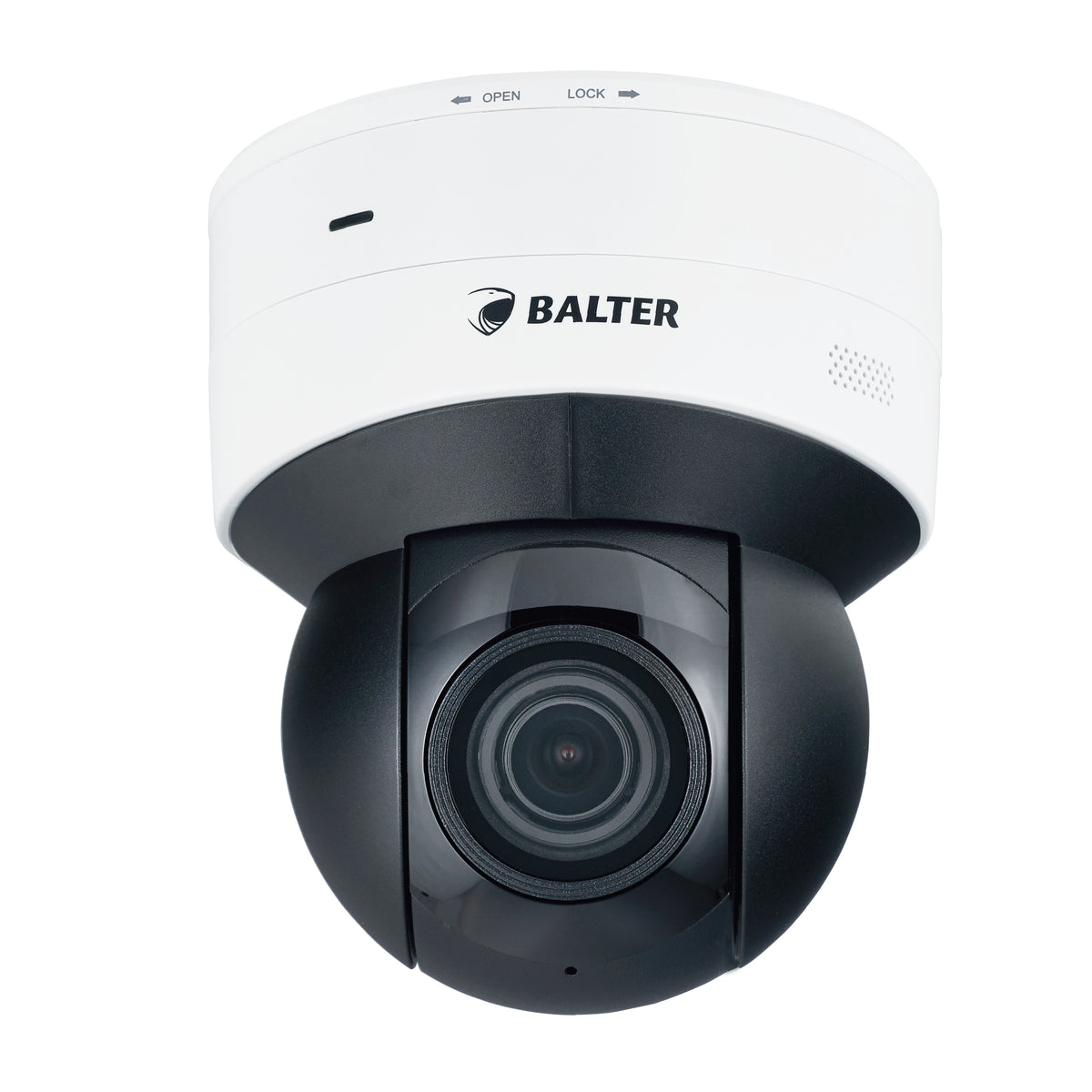

BALTER X ECO IP Mini PTZ camera with 2.0MP, 5X zoom, 1920x1080p, 30m night vision, 120dB WDR, Ultra H.265, VCA, 60°/sec speed, microphone, speaker, PoE/12V DC
Item number IP-PTZ2000IRE
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 2.0MP (1920x1080p)
- 2.0MP (1920x1080p)
- 1/2.7" CMOS, 8x ROI
- 1/2.7" CMOS, 8x ROI
- 2.7-13.5mm motorized zoom
- 2.7-13.5mm motorized zoom
- 5x optical zoom
- 5x optical zoom
- 30fps at 2.0MP
- 30fps at 2.0MP
- Night vision up to 30m
- Night vision up to 30m
Description
BALTER X ECO IP Mini-PTZ camera with 2.0MP, 5X zoom, 1920x1080p, 30m night vision, 120dB WDR, Ultra H.265, VCA, 60°/sec. speed, microphone, speaker, PoE/12V DC
The IP-PTZ2000IRE is a high-performance indoor mini-PTZ dome camera that delivers excellent image quality in all lighting conditions. The camera features the latest 1/2.7” CMOS sensor and advanced image processing technologies for high-quality 2.0-megapixel images with a wide dynamic range and outstanding low-light sensitivity, combined with true day/night capability.
Thanks to the integrated IR illumination with advanced Smart IR technology, it can capture near and distant objects even in total darkness up to a range of 30m without overexposure. With the additional benefits of intelligent analysis, a reliable LAN connection, convenient installation, and powerful security features, the IP-PTZ2000IRE is the ideal choice for demanding security, monitoring, and control applications.
- IP mini-PTZ dome camera with 2.0MP resolution
- 2.7-13.5mm motorized zoom lens with auto-focus
- 5X optical zoom
- Night vision range up to 30 meters
- 1/2.7" StarLight sensor
- Wide Dynamic Range (WDR) 120dB
- Support for Ultra H.265, H.265, H.264, and MJPEG video formats
- Frame rate at 2.0MP resolution: 1920 x 1080p @ 25fps / 30fps
- Multilingual on-screen menu (German, English, etc.)
- Simple commissioning via Cloud P2P (QR code)
- 24x privacy mask zones, motion detection
- 8x Region of Interest zones, calendar, e-mail notifications
- 3D and 2D digital noise reduction, flip, Smart IR
- WebViewer, iOS + Android apps, PC + MacOS CMS
Smart behavioral analysis and identification: - Perimeter protection, including line crossing and intrusion detection
- Removed object, abandoned object
- Based on target classification, intelligent intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc.
- Accurate focusing on people and/or motor vehicles/cars and non-motor vehicles
- Face capture
- People counting
- Motion detection, tampering alarm, audio detection
- 350° pan range
- Max. 60°/sec. pan speed
- Max. 50°/sec. tilt speed
- 1024 preset positions
- Preset tours, tour patrol
- Recorded tours
- Home position
- 2-way audio transmission (bidirectional)
- Built-in microphone and speaker
- Alarm input/output 1/1
- microSD card slot up to 256GB
- ANR, NAS (NFS), ONVIF (Profile S, Profile G, and Profile T)
- RJ45 (1x) output, RS485
- PTZ camera for indoor use
- 4KV surge protection for the network interface
- Power supply via PoE and 12V DC
- Power consumption up to 15 watts
- Camera dimensions D129 x 143.6 mm
Technical data
- Camera Type
- IP PTZ Dome Camera
- Image Sensor
- 1/2.7" progressive scan CMOS
- Resolution
- 2.0 Megapixel
- Aspect Ratio
- 16:9
- Active Pixels
- 1920 (H) x 1080 (V)
- Frame Rate
- 30 fps at 2880 x 1620p (50Hz); 30 fps at 1920 x 1080p (50Hz)
- Resolution Scaling
- 1920x1080p (Main Stream) to 720 x 576p (Third Stream)
- Image Compression Method
- Ultra H.265, H.265, H.264, MJPEG
- H.264 Code Profile
- Baseline profile, Main profile, High profile
- Minimum Illumination
- Color: 0.003Lux (F1.5, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD LEDs, Auto / Manual
- IR LED Technology
- 850nm, Smart IR
- Illumination Range
- 30 meters
- Dynamic Range
- 56dB
- Dynamic Range (WDR on)
- 120dB
- Optical Zoom
- 5X
- Lens
- 2.7 - 13.5mm Motorized Zoom
- Lens Type
- Day/Night motorized zoom lens (IR), remote focus and zoom, auto-focus, day/night (IR)
- Viewing Angle
- 106.90° to 30.60° (horizontal), 56.10° to 17.70° (vertical)
- Pan Range
- 350°
- Pan Speed
- Preset: 60°/s / Manual: 0.1°/s to 60°/s (proportional to zoom)
- Tilt Range
- 0° to 90° (with auto-flip function)
- Tilt Speed
- Preset: 50°/s / Manual: 0.1°/s to 50°/s (proportional to zoom)
- Preset Positions
- 1024
- PTZ Mode
- Preset tours, patrol tours, recorded tours, home position
- On-Screen Menu
- Via web interface, CMS and network video recorder
- Camera Title
- Text and numbers, time, date
- Day/Night
- Auto (ICR) / Day / Night / Schedule
- Overexposure Protection
- Smart IR
- Backlight Compensation
- BLC
- Highlight Compensation
- HLC
- Wide Dynamic Range
- WDR 120dB
- Noise Reduction
- 2D-DNR / 3D-DNR
- Low Light Enhancement
- Supported
- White Balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain Control
- AGC
- Anti-Fog
- Digital anti-fog
- Motion Detection
- 4x motion detection zones
- Electronic Shutter Speed
- Auto / Manual (1 ~ 1/100,000s)
- Privacy Masking
- 24x privacy zones
- Other Settings
- Electronic Image Stabilization (EIS)
- Region of Interest
- 8x ROI zones
- Digital Zoom
- 16X
- Tamper Alarm
- Supported
- Intelligent Video Analysis
- Based on target classification, the intelligent intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc. Precise focus on humans and/or motor vehicles/cars and non-motorized vehicles
- Video Content Analysis
- Line crossing detection, intrusion detection
- Basic Event Detection
- Motion detection, tampering alarm, audio detection
- Smart Detection
- Intelligent perimeter protection, including line crossing, intrusion, entering and exiting area, removed object, left object detection
- Behavior Analysis
- People counting
- Face Detection
- Face capture
- Email Notification
- Supported
- Snapshot
- Supported
- Video Streaming
- Main Stream: 5MP @ 30fps; 4MP @ 30fps; 3MP @ 25fps; 1080P @ 30/25fps; Sub Stream: 720P @ 30fps; D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps; Third Stream: D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps
- Streaming Method
- Unicast / Multicast
- Streaming Protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Peer-to-Peer
- Cloud P2P
- User Access
- 5 or more simultaneous users
- Web Viewer
- Live view plug-in required: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in-free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Security
- Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Other Camera Functions
- Pre-alarm + post-alarm
- Languages
- German, English, French, Turkish, etc.
- Housing Color
- White
- Camera Orientation
- Ceiling mount, wall mount with appropriate brackets
- Memory Card
- Up to 256GB microSD card
- Data Storage on NAS
- ANR, NAS (NFS)
- Interface Standard
- ONVIF (Profile S, Profile G, Profile T), API
- Microphone
- Built-in microphone
- Speaker
- Built-in speaker
- Alarm Input / Output
- 1 input / 1 output
- 2-Way Audio Communication
- Supported
- Audio Compression
- G.711
- Audio Bitrate
- 8KHZ
- RS-485
- RS485
- Network
- RJ-45 (10/100M Ethernet interface)
- Surge Protection
- 4KV
- Protection Class
- Indoor use only
- Operating Temperature / Humidity
- -10°C to +50°C / 0% to 95% (non-condensing)
- Power Supply
- 12V DC or PoE (IEEE 802.3af compliant)
- Power Consumption
- Max. 15 Watts

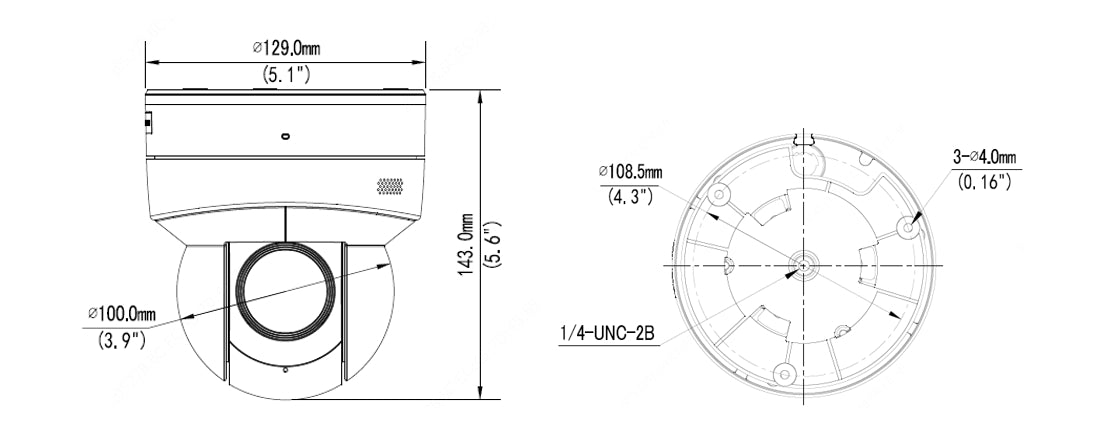

- Dimensions
- Ø129 x 143.6mm
- Weight
- 760g
What is included
- BALTER X ECO IP Mini PTZ camera with 5.0MP, 5X zoom, 2592x1944p, 30m night vision, 120dB WDR, Ultra H.265, VCA, 60°/sec speed, microphone, speaker, PoE/12V DC - IP-PTZ2000IRE
- Mounting template
- Screw set
- Allen key
- Quick guide
