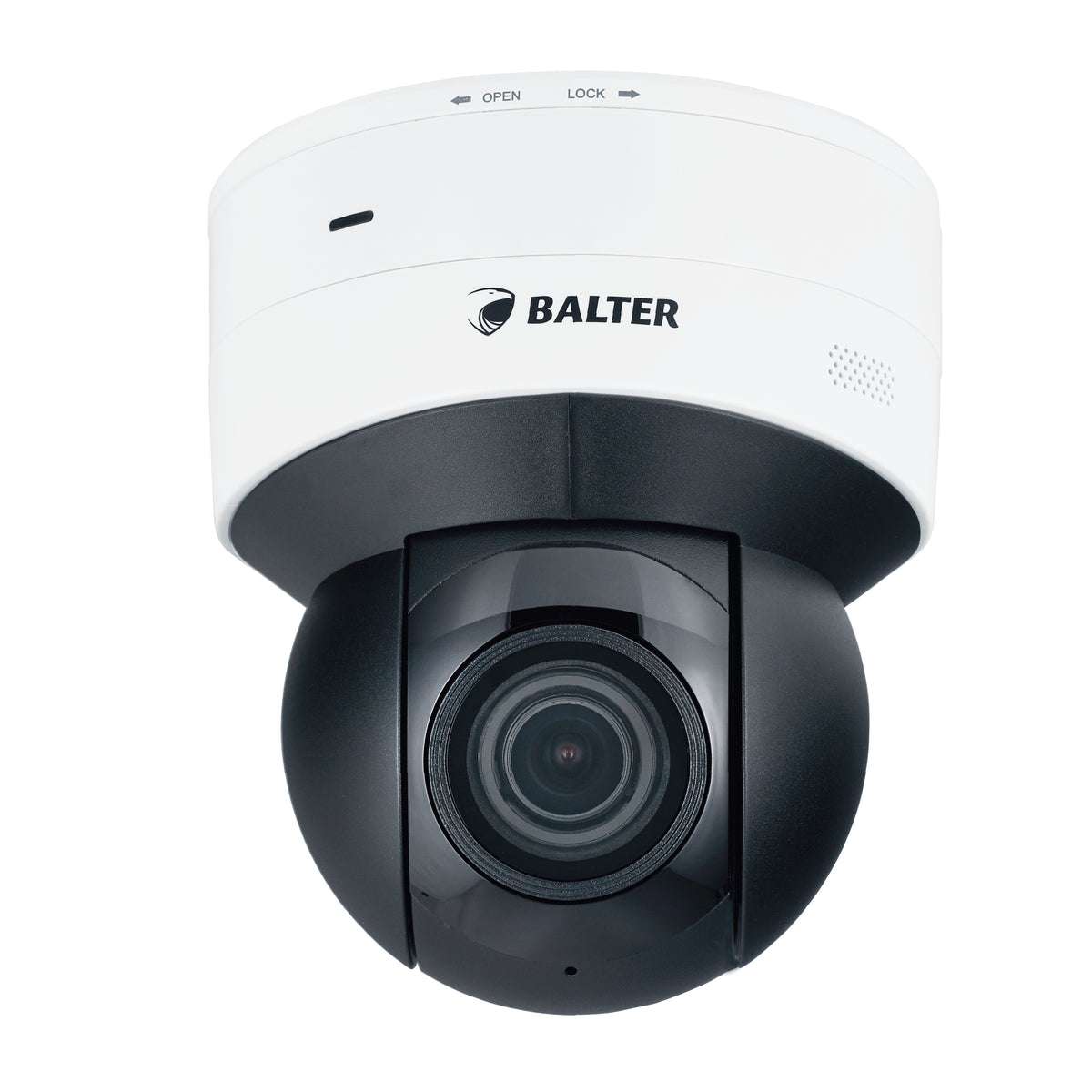

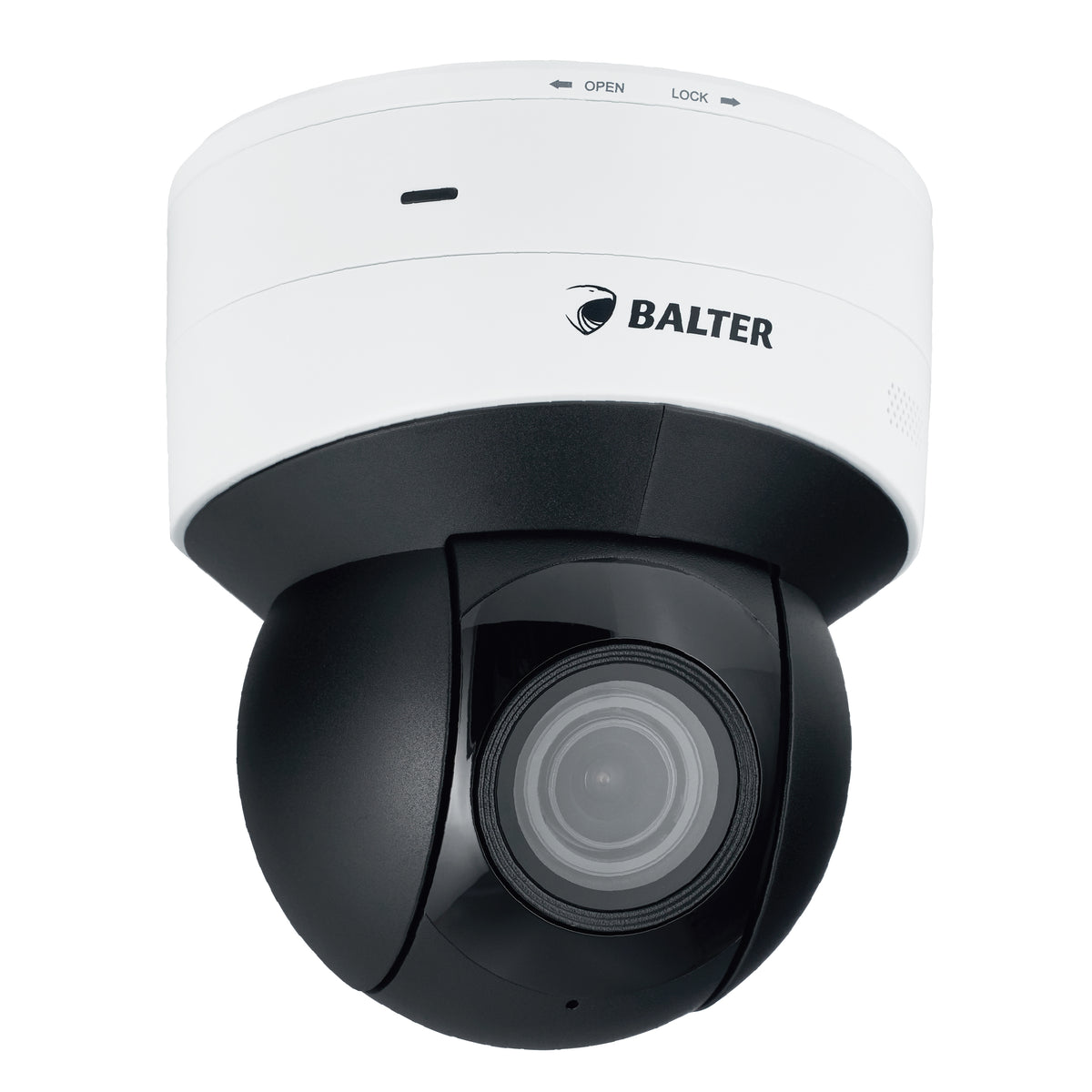

BALTER X ECO IR Mini-PTZ Network Dome Camera with 5.0 MP, 5× zoom, 2880×1620, 30 m night vision, 120 dB WDR, Ultra H.265, VCA, 2-way audio, PoE+/12V DC
Item number IP-PTZ5000IRE-WIFI
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 5.0 MP (2880 × 1620p)
- 5.0 MP (2880 × 1620p)
- 1/2.7" CMOS sensor
- 1/2.7" CMOS sensor
- 2.7–13.5 mm motorized zoom
- 2.7–13.5 mm motorized zoom
- 5× optical zoom
- 5× optical zoom
- Night vision up to 30 m
- Night vision up to 30 m
- WDR 120 dB
- WDR 120 dB
Description
BALTER X ECO IR Mini-PTZ Network Dome Camera with 5.0 MP, 5× Zoom, 2880×1620, 30 m Night Vision, WDR 120 dB, Ultra H.265, VCA, 2-Way Audio, PoE+/12V DC
The IP-PTZ5000IRE-WIFI is a high-performance indoor mini-PTZ dome camera that delivers outstanding image quality even in low-light conditions thanks to state-of-the-art LightHunter technology. Equipped with a 1/2.7" CMOS sensor, it produces detailed 5-megapixel images with high dynamics and excellent color reproduction.
The motorized 2.7–13.5 mm lens with 5x optical zoom allows for flexible monitoring with variable viewing angles. The integrated IR illumination ensures clear images in total darkness with a range of up to 30 meters.
Thanks to intelligent video analytics (VCA), the camera reliably detects events such as line crossing or intrusion into defined areas and significantly reduces false alarms through person and vehicle classification. The integrated WiFi function enables quick installation without complex cabling.
With features such as 2-way audio, alarm inputs/outputs, and support for microSD cards up to 512 GB, the camera offers a flexible and reliable solution for modern security applications.
Technical Data
- IP mini-PTZ dome camera with 5 MP resolution
- 2.7–13.5 mm motorized zoom lens with autofocus
- 5× optical zoom
- Night vision range up to 30 meters
- 1/2.7" CMOS sensor with LightHunter technology
- Wide Dynamic Range (WDR) 120 dB
- Supported video formats: Ultra H.265, H.265, H.264, MJPEG
- Resolution: 2880 × 1620 @ 30 fps
- Triple streaming (Main, Sub, Third Stream)
Intelligent functions:
- Smart Intrusion Prevention (line crossing, intrusion, etc.)
- False alarm filter (person and vehicle detection)
- Motion detection, audio detection, tampering alarm
- Object left behind / removed
- Face detection
PTZ functions:
- 350° pan range
- 0°–90° tilt range
- Max. 60°/s pan speed
- Max. 50°/s tilt speed
- 1024 presets
- 16 tours / patrols
- Home position
Audio / Network / Storage:
- WiFi (IEEE 802.11 b/g/n)
- 2-way audio (integrated microphone & speaker)
- Alarm input/output: 1/1
- Audio input/output: 1/1
- microSD slot up to 512 GB
- ONVIF Profile S, G, T compatible
Other features:
- 24 privacy mask zones
- 2D/3D noise reduction
- Digital Defog, BLC, HLC
- 4 kV surge protection
- Operating temperature: -10°C to +50°C
Power supply:
- PoE+ (IEEE 802.3at)
- 12V DC
Technical data
- Camera Type
- IP PTZ Dome Camera
- Image Sensor
- 1/2.7" progressive scan CMOS
- Resolution
- 5.0 Megapixels
- Aspect Ratio
- 4:3 / 16:10
- Active Pixels
- 2880 (H) x 1620 (V)
- Frame Rate
- Main Stream: 5 MP (2880 × 1620), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps
- Resolution Scaling
- 2880 x 1620p (Main Stream) to 720 x 576p (Third Stream)
- Image Compression Method
- Ultra H.265, H.265, H.264, MJPEG
- H.264 Code Profile
- Baseline profile, Main profile, High profile
- Minimum Illumination
- Color: 0.003Lux (F1.5, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD-LEDs, Auto / Manual
- IR LED Technology
- 850nm, Smart IR
- Illumination Range
- 30 meters
- Dynamic Range
- 56dB
- Dynamic Range (WDR on)
- 120dB
- Optical Zoom
- 5X
- Lens
- 2.7 - 13.5mm Motorized Zoom
- Lens Type
- Day/Night motorized zoom lens (IR), remote focus and zoom, auto-focus, day/night (IR)
- Field of View
- 104.90° to 30.60° (horizontal), 55.40° to 17.70° (vertical)
- Pan Range
- 350°
- Pan Speed
- Preset: 60°/sec. / Manual: 0.1°/sec. to 60°/sec. (proportional to zoom)
- Tilt Range
- 0° to 90° (with auto-flip function)
- Tilt Speed
- Preset: 50°/sec. / Manual: 0.1°/sec. to 50°/sec. (proportional to zoom)
- Preset Positions
- 1024
- PTZ Mode
- Preset tours, tour patrol, recorded tours, home position
- OSD Menu
- Via web interface, CMS and network video recorder
- Camera Title
- Text and numbers, time, date
- Day/Night
- Auto (ICR) / Day / Night / Schedule
- Overexposure Protection
- Smart IR
- Backlight Compensation
- BLC
- Highlight Compensation
- HLC
- Wide Dynamic Range
- WDR 120dB
- Noise Reduction
- 2D-DNR / 3D-DNR
- Low Light Enhancement
- Supported
- White Balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain Control
- AGC
- Defog
- Digital defog
- Motion Detection
- 4x motion detection zones
- Electronic Shutter Speed
- Auto / Manual (1 ~ 1/100,000s)
- Privacy Masking
- 24x privacy zones
- Other Settings
- Electronic Image Stabilization (EIS)
- Region of Interest
- 8x ROI zones
- Digital Zoom
- 16X
- Tamper Alarm
- Supported
- Intelligent Video Analytics
- Based on target classification, intelligent intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc. Precise focus on people and/or motor vehicles/cars and non-motorized vehicles
- Video Content Analysis
- Line crossing detection, intrusion detection
- Basic Event Detection
- Motion detection, tamper alarm, audio detection
- Smart Detection
- Intelligent perimeter protection, including line crossing detection, intrusion, enter area, leave area, removed object, left behind object
- Behavioral Analysis
- People counting
- Face Recognition
- Face capture
- Email Notification
- Supported
- Snapshot
- Supported
- Video Streaming
- Main Stream: 5 MP (2880 × 1620), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps
- Streaming Method
- Unicast / Multicast
- Streaming Protocols
- SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
- Peer-to-Peer
- Cloud P2P
- User Access
- 5 or more concurrent users
- Web Viewer
- Plug-in required for live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
- Security
- TLS 1.3, password protection, strong password, HTTPS encryption, export of operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Other Camera Functions
- Pre-alarm + post-alarm
- Languages
- German, English, French, Turkish, etc.
- WIFI Standard
- IEEE802.11b, 802.11g, 802.11n
- WIFI Transmission Bandwidth
- 2.400 GHz to 2.483 GHz
- WIFI Security
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- WIFI Transmission Range
- Up to 50m
- Housing Color
- White
- Camera Orientation
- Ceiling mount, wall mount with appropriate brackets
- Memory Card
- Up to 256GB microSD card
- Data Offloading to NAS
- ANR, NAS (NFS)
- Interface Standard
- ONVIF (Profile S, Profile G, Profile T), API
- Microphone
- Built-in microphone
- Speaker
- Built-in speaker
- Alarm Input / Output
- 1 Input / 1 Output
- 2-Way Audio Communication
- Supported
- Audio Compression
- G.711U, G.711A
- Audio Bitrate
- 128 Kbps
- RS-485
- 1 x RS485
- Network
- RJ-45 (10/100M Ethernet interface)
- Surge Protection
- 4KV
- Protection Class
- Indoor use only
- Operating Temperature / Humidity
- -10°C to +50°C / 0% to 95% (non-condensing)
- Power Supply
- 12V DC or PoE (IEEE 802.3af compatible)
- Power Consumption
- Max. 18 Watts
- Dimensions
- Ø129 x 143.6mm
- Weight
- 780g
