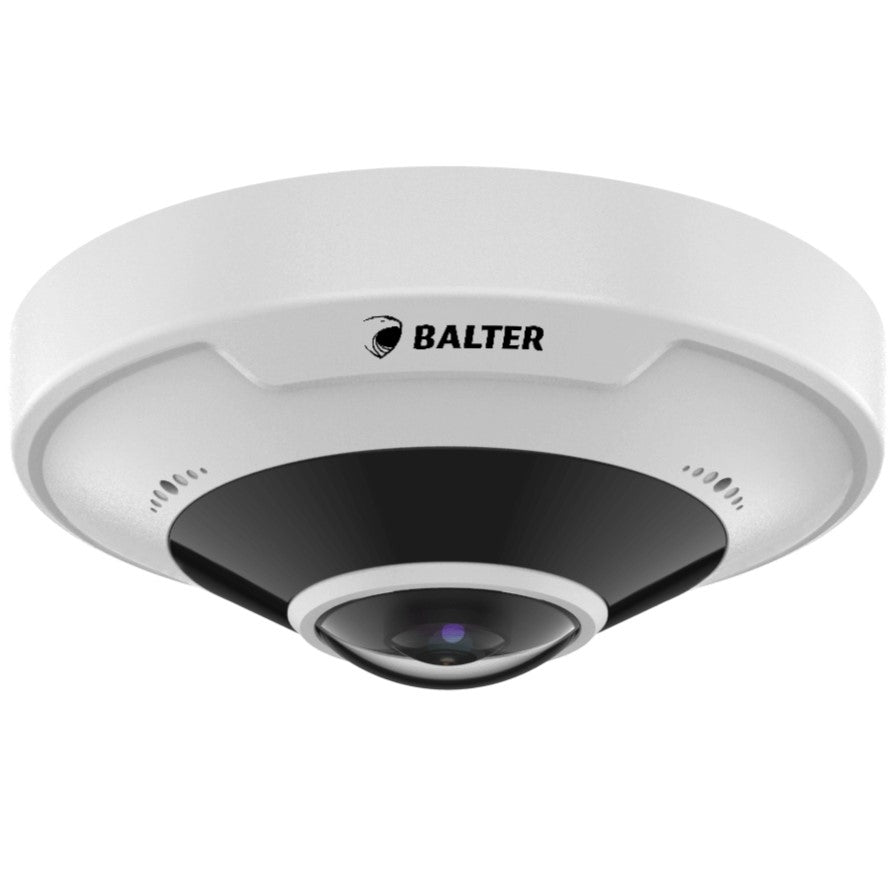

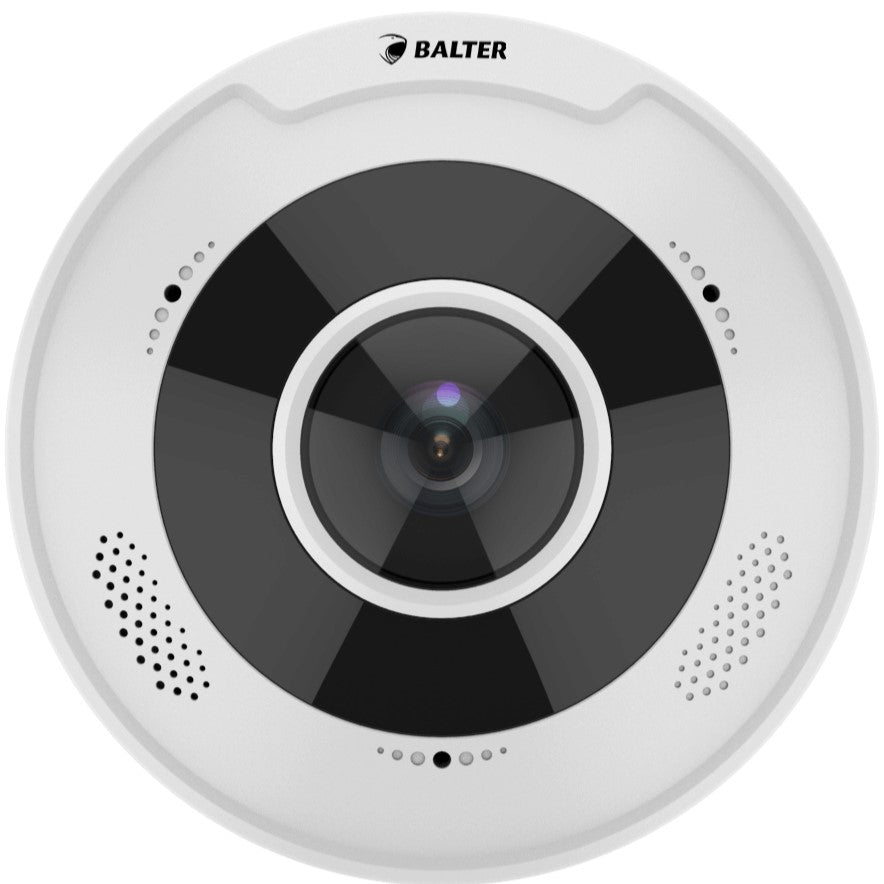

BALTER X ECO IP fisheye camera with 5.0MP, 360° panoramic camera angle, 2592x1944, 10m night vision, 120dB WDR, Ultra H.265, microphone, IP66, PoE/12VDC
Item number IP-FE30IRE
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 5.0MP (2592x1944p)
- 5.0MP (2592x1944p)
- 1/2.8" CMOS
- 1/2.8" CMOS
- 360° Fisheye Panorama
- 360° Fisheye Panorama
- 30fps at 5.0MP
- 30fps at 5.0MP
- Night vision up to 10m
- Night vision up to 10m
- WDR 120dB
- WDR 120dB
Description
BALTER X ECO IP Fisheye Camera with 5.0MP, 360° panoramic camera angle, 2592x1944, night vision 10m, WDR 120dB, Ultra H.265, microphone, IP66, PoE/12VDC
The IP-FE30IRE is a high-performance IP fisheye panoramic camera for indoor and outdoor use that delivers excellent image quality in all lighting conditions. The camera features the latest 1/2.8" CMOS sensor and advanced image processing technologies for high-quality 5.0-megapixel images with a wide dynamic range, excellent sensitivity in low-light conditions, combined with true day/night capability.
Thanks to the integrated IR illumination with advanced Smart IR technology, it can capture objects near and far even in total darkness up to a range of 10m without overexposure. With the additional benefits of intelligent analysis, convenient installation, and powerful security features, the IP-FE30IRE is the ideal choice for demanding security, surveillance, and control applications.
- IP fisheye panoramic dome camera with 5.0MP resolution
- 1.4mm lens with autofocus
- F2.0 aperture
- Night vision range up to 10 meters
- 1/2.8" progressive scan CMOS sensor
- Wide Dynamic Range (WDR) 120dB
- Support for Ultra H.265, H.265, H.264, and MJPEG video formats
- Frame rate at 5.0MP resolution: 2592 x 1944p @ 25fps / 30fps
- Frame rate at 2.0MP resolution: 1920 x 1080p @ 25fps / 30fps
- Multilingual on-screen menu (German, English, etc.)
- Simple commissioning via cloud P2P (QR code)
- 8x privacy mask zones, motion detection
- 8x Region of Interest zones, calendar, email notifications
- 3D and 2D digital noise reduction, mirroring, Smart IR
- WebViewer, iOS + Android apps, PC + MacOS CMS
- 2-way audio transmission (bidirectional)
- Built-in microphone
- Alarm input/output 1/1
- microSD card slot up to 256GB
- ANR, NAS (NFS), ONVIF (Profile S, Profile G, and Profile T)
- RJ45 (1x) output
- 4KV surge protection for the network interface
- Power supply via PoE and 12V DC
- Power consumption up to 8.5 watts
- Camera dimensions Φ125 × 43.7 mm
Technical data
- Camera Type
- IP Fisheye Panoramic Camera
- Image Sensor
- 1/2.8" progressive scan CMOS
- Resolution
- 5.0 Megapixels
- Aspect Ratio
- 4:3 / 16:9
- Active Pixels
- 2592(H) x 1944 (V)
- Frame Rate
- 30 fps at 2592x1944p
- Resolution Scaling
- 2592x1944p (Main Stream) to 352x288p (Third Stream)
- Image Compression Method
- Ultra H.265, H.265, H.264, MJPEG
- Minimum Illumination
- Color: 0.01 lux (F2.0, AGC ON) 0 lux with IR
- Infrared LEDs
- Infrared SMD-LEDs, Auto / Manual
- IR LED Technology
- 850nm, Smart IR
- Illumination Range
- 10 meters
- Dynamic Range
- 55dB
- Dynamic Range (WDR on)
- 120dB
- Lens
- 1.4mm@F2.0
- Lens Type
- Fixed
- Viewing Angle
- 360° panoramic
- On-Screen Menu
- Via web interface, CMS and network video recorder
- Camera Title
- Text and numbers, time, date
- Day/Night
- Auto (ICR) / Manual
- Overexposure Protection
- Smart IR
- Backlight Compensation
- BLC
- Highlight Compensation
- HLC
- Wide Dynamic Range
- 120dB
- Noise Reduction
- 2D DNR / 3D DNR
- White Balance
- Auto
- Defog
- Digital defog
- Motion Detection
- Supported
- Privacy Masking
- 8x privacy zones
- Tamper Alarm
- Supported
- Web Viewer
- Plug-in required for live view: IE9+, Chrome 41 and lower, Firefox 52 and lower; Plug-in-free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Languages
- German, English, etc.
- Microphone
- Built-in
- 2-Way Audio Communication
- Supported
- Audio Compression
- G.711
- Audio Bitrate
- 64 Kbps
- Surge Protection
- 4KV
- Protection Class
- IP66
- Power Supply
- 12V DC / PoE
- Power Consumption
- 8.5W Max
- Dimensions
- Φ125 × 43.7 mm
- Weight
- 360g
What is included
- BALTER X ECO IP Fisheye camera with 5.0MP, 360° panoramic camera angle, 2592x1944, 10m night vision, WDR 120dB, Ultra H.265, microphone, IP66, PoE/12VDC
- Mounting template
- Screw set
- Allen key
- Quick guide
