IP X dome cameras
BALTER X PRO NightHawk vandal-proof IP dome camera with 4.0MP, 2.7-13.5mm motorized zoom, autofocus, 40m night vision, Ultra Low Light, 120dB WDR, Deep Learning AI, alarm, audio, PoE/12V DC, IK10, IP67
Item number IP-D200IRP
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 4.0MP (2688x1520p)
- 4.0MP (2688x1520p)
- 2.7-13.5mm motorized zoom
- 2.7-13.5mm motorized zoom
- 1/3" CMOS, autofocus
- 1/3" CMOS, autofocus
- 25fps at 2688x1520p
- 25fps at 2688x1520p
- Night vision up to 40m
- Night vision up to 40m
- WDR 120dB, Cloud P2P
- WDR 120dB, Cloud P2P
Description

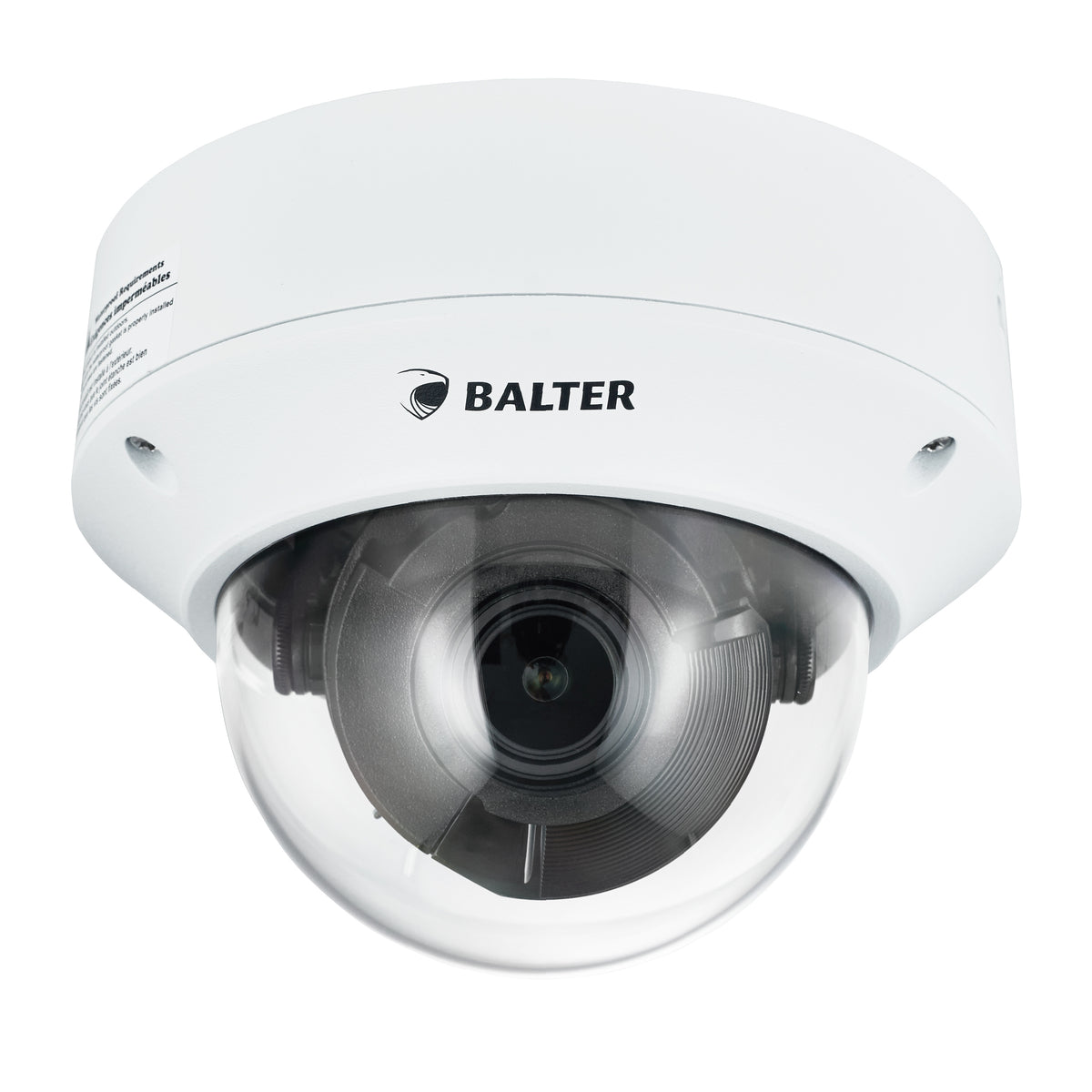

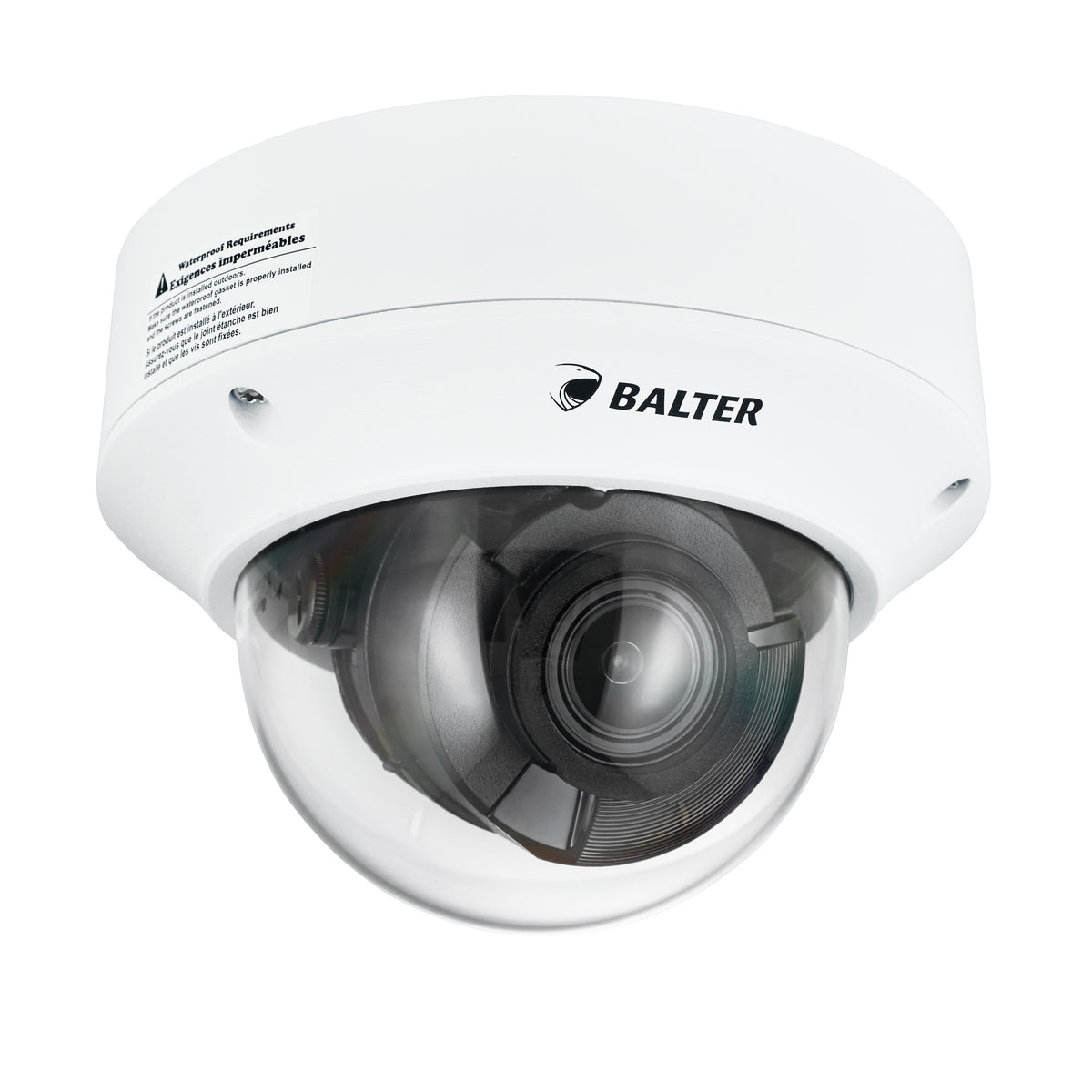

BALTER X PRO NightHawk 4.0MP Vandal-resistant IP Dome Camera, 2.7-13.5mm AF Motorzoom, Night Vision 40m, WDR 120dB, Deep Learning AI
- IP Dome camera with 4.0MP resolution
- 2.7-13.5mm motor zoom lens with autofocus
- Night vision range up to 40 meters
- NightHawk - Ultra Low Light, 1/3" StarLight sensor
- Wide Dynamic Range (WDR) 120dB
- Support for Ultra 265, H.265, H.264, and MJPEG video formats
- Frame rate at 4.0MP resolution: 2592 x 1520p @ 25fps
- Frame rate at 2.0MP resolution: 1920 x 1080p @ 25fps
- Multilingual on-screen menu (German, English, etc.)
- Easy setup via Cloud P2P (QR code)
- 4x privacy mask zones, 4x motion detection zones
- 8x Region of Interest zones, calendar, email notifications
- 3D and 2D digital noise reduction, flip, smart IR
- WebViewer, iOS + Android apps, PC + MacOS CMS
- Smart behavior analysis and identification:
- Intelligent perimeter protection, including detection of line crossing, intrusion, entering and exiting areas
- Based on target classification, intelligent intrusion prevention significantly reduces false alarms from foliage, birds, lights, etc.
- Precise focus on humans and/or motor vehicles/cars and non-motorized vehicles
- Detection of line crossing, intrusion, area entering, area exiting
- Motion detection, tampering alarm, audio detection
- 2-way audio transmission (bidirectional)
- Built-in microphone
- Alarm input/output 1/1 + Audio input/output 1/1
- microSD card slot up to 256GB
- ANR, NAS, ONVIF (Profile S, Profile G, and Profile T)
- Vandal protection IK10 (metal housing)
- Protection against water and dust IP67
- Power supply via PoE and 12V DC
- Power consumption up to 9 watts

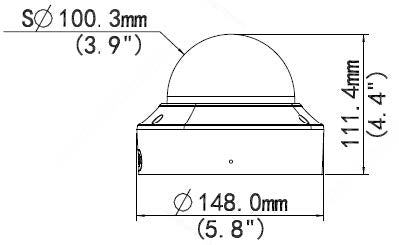

- Camera dimensions D148 x 111.4 mm
Technical data
- Camera Type
- IP Dome Camera
- Image Sensor
- 1/3" progressive scan CMOS
- Resolution
- 4.0 Megapixel
- Aspect Ratio
- 16:10
- Active Pixels
- 2688 (H) x 1520 (V)
- Frame Rate
- 25 fps at 2688 x 1520p; 25 fps at 2560 x 1440p; 25 fps at 2304 x 1296p; 25 fps at 1920 x 1080p
- Resolution Scaling
- 2688 x 1520p (Main Stream) to 352 x 288p (Third Stream)
- Video Compression Method
- Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile
- Baseline profile, Main profile, High profile
- Minimum Illumination
- Color: 0.002Lux (F1.2, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD LEDs, Auto / Manual
- IR LED Technology
- 850nm, Advanced IR, NightHawk
- Illumination Range
- 40 meters
- Dynamic Range
- 56dB
- Dynamic Range (WDR on)
- 120dB
- Optical Zoom
- 5X
- Lens
- 2.7 - 13.5mm Motorized Zoom
- Lens Type
- Day/Night motorized zoom lens (IR), remote focus and zoom, auto-focus, day/night (IR)
- Viewing Angle
- 98.26° to 31.35° (horizontal), 54.76° to 18.55° (vertical)
- On-Screen Menu
- Web interface, CMS, and Network Video Recorder
- Camera Title
- Supported
- Day/Night
- Auto (ICR) / Day / Night / Disabled
- Overexposure Protection
- Smart IR
- Backlight Compensation
- BLC
- Highlight Compensation
- HLC
- Wide Dynamic Range
- WDR 120dB
- Noise Reduction
- 2D-DNR / 3D-DNR
- Low Light Enhancement
- Supported
- White Balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain Control
- AGC
- Anti-Fog
- Digital anti-fog
- Mirror
- Normal / Vertical / Horizontal / 180° / 90° clockwise / 90° counter-clockwise
- Dewarping
- Supported
- Motion Detection
- 4x motion detection zones
- Electronic Shutter
- Auto / Manual (1 ~ 1/100,000s)
- Privacy Masking
- 4x privacy zones
- Region of Interest
- 8x ROI zones
- Tamper Alarm
- Supported
- Intelligent Video Analytics
- Based on target classification, intelligent intrusion prevention significantly reduces false alarms caused by leaves, birds, lights, etc. Precise focus on humans and/or motor vehicles/cars and non-motorized vehicles
- Video Content Analysis
- Line crossing detection, intrusion, area entry, area exit
- Basic Event Detection
- Motion detection, tampering alarm, audio detection
- Smart Detection
- Intelligent perimeter protection, including line crossing, intrusion, area entry, and area exit detection
- Email Notification
- Supported
- Video Streaming
- Main Stream: 4MP @ 25fps; 3MP @ 25fps; 1080P @ 30/25fps; Sub Stream: 720P @ 30fps; D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps; Third Stream: D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps
- Streaming Method
- Unicast / Multicast
- Streaming Protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Peer-to-Peer
- Cloud P2P
- User Access
- 5 and more simultaneous user accesses
- Web Viewer
- Plug-in required for live view: IE9+, Chrome 41 and lower, Firefox 52 and lower; Plug-in-free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Security
- Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Other Camera Functions
- Support for 9:16 corridor mode, pre-alarm + post-alarm, mirror, rotate
- Languages
- German, English, French, Turkish, etc.
- Housing Color
- White
- Camera Orientation
- 3-axis (wall and ceiling mounting)
- Adjustment Angle
- Pan 0° ~ 355°; Tilt 0° ~ 80°; Rotate 0° ~ 355°
- Memory Card
- Up to 256GB microSD card
- Data Offloading to NAS
- ANR, NAS (NFS)
- Interface Standard
- ONVIF (Profile S, Profile G, Profile T), API
- Microphone
- Built-in microphone
- Audio Input / Output
- 1 input: impedance 35kΩ; amplitude 2V [p-p]; 1 output: impedance 600Ω; amplitude 2V [p-p]
- Alarm Input / Output
- 1 input / 1 output
- 2-Way Audio Communication
- Supported
- Audio Compression
- G.711
- Audio Bitrate
- 8KHZ
- Network
- RJ-45 (10/100M Ethernet interface)
- Surge Protection
- 6KV
- Vandal Resistance
- IK10
- Protection Class
- IP67
- Operating Temperature / Humidity
- -30°C to +60°C / 0% to 95% (non-condensing)
- Power Supply
- 12V DC or PoE (IEEE 802.3af compatible)
- Power Consumption
- Max. 7 watts
- Dimensions
- 148 (D) x 111.4 (H) mm
- Weight
- 920g
What is included
- BALTER X PRO NightHawk Vandal-resistant IP Dome Camera with 4.0MP, 2.7-13.5mm Motorized Zoom, AutoFocus, Night Vision 40m, Ultra Low Light, WDR 120dB, Deep Learning AI, Alarm, Audio, PoE/12V DC, IK10, IP67 - IP-D200IRP
- Mounting template
- Allen key
- Screw set
- Quick guide
