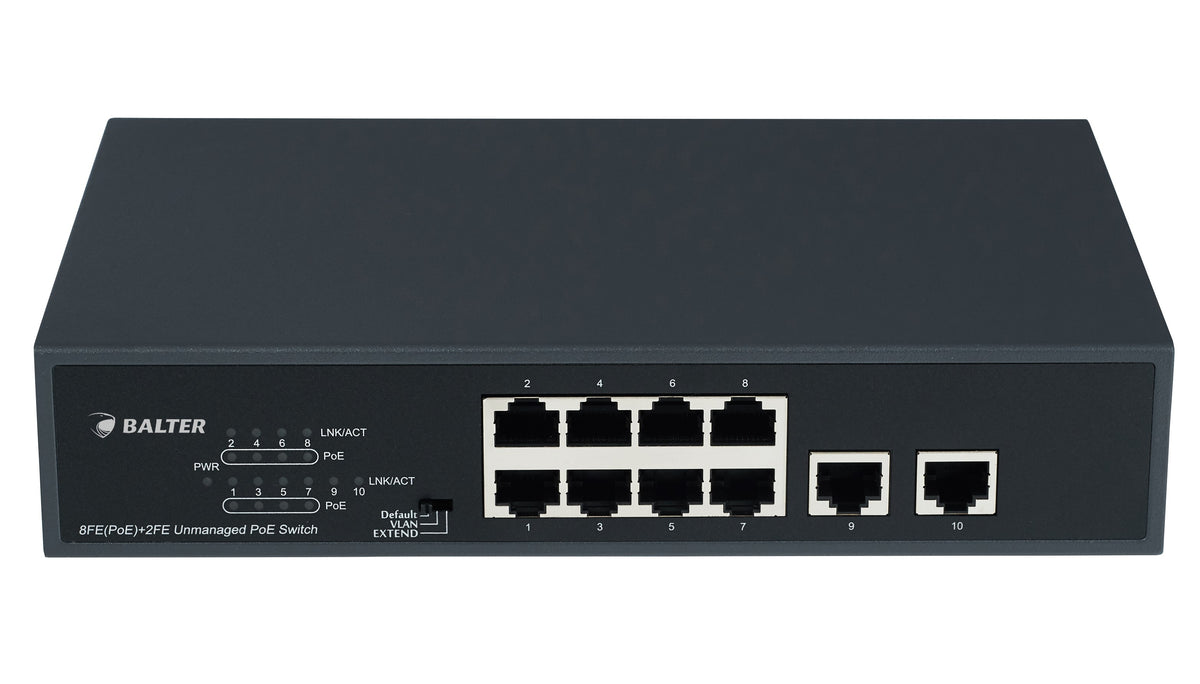

BALTER X ECO Unmanaged PoE Switch with 10 x 100Mbps network ports (RJ45) incl. 8x PoE ports, 120 Watt, 230V AC
Item number SW-8POE-S4
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 10x network ports
- 10x network ports
- 8x PoE ports
- 8x PoE ports
- PoE power 120W
- PoE power 120W
- Max. 30W PoE / port
- Max. 30W PoE / port
- Fanless housing
- Fanless housing
- Transmission up to 250m
- Transmission up to 250m
Description
BALTER X ECO Unmanaged PoE Switch with 10 x 100Mbps network ports (RJ45) incl. 8x PoE ports, 120 Watt
8x PoE network switch with 2x uplink ports for PoE and network applications. SW-8POE-S4 offers eight downlink ports and two uplink Ethernet ports. The eight downlink ports support the 802.3af standard by default and offer a maximum of 30 watts PoE output power per single port, with a total switch PoE power of 120W. The device supports VLAN, ensuring that communication between downlink and uplink ports is completely isolated. With the SW-8POE-S4 switch, numerous security-related projects can be implemented, e.g., in hotels, schools, restaurants, private homes, and other small to medium-sized properties.
- 8x 10/100Base-T Ethernet ports (PoE+)
- 2x 10/100BASE-T Ethernet uplink ports
- Network standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
- PoE power supply: With 8x PoE RJ45 ports
- Each port supports max. 30 watts PoE power; the total power is 120 watts
- VLAN support and range extension up to 250m
- 1.49GBps switch capacity; 4K MAC addresses
- Supports buffer optimization
- Plug & Play, convenient and easy to use
- Fanless metal housing
- Dimensions 220 x 150 x 44 mm
Technical data
- Downstream Ports
- 8x 10/100Base-T (PoE)
- PoE Ports
- 8x PoE
- Uplink Ports
- 2x 10/100/1000Base-T Ethernet Ports
- PoE Output Power
- 30 Watts / port (max.), 54V DC
- PoE Power Budget
- 120 Watts
- Network Standard
- IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at
- Switching Capacity
- 2Gbps
- Forwarding Rate
- 1.49Mpps
- Switching Method
- Store and forward
- Packet Buffer
- 1.625Mbit
- MAC Table
- 4K
- PoE Standard
- 802.3af/at (PSE)
- PSE Type
- End-span
- Operating Mode
- Normal / VLAN / Extend
- Transmission Distance
- 100m / 250m
- Additional Features
- Fanless
- Housing Material
- Metal housing
- Housing Color
- Black
- Operating Temperature / Humidity
- 0°C to 45°C / 5% to 95% (non-condensing)
- Power Supply
- 100 to 240V AC, 50/60Hz
- Power Consumption
- Under 135 Watts (including PoE)
- Weight
- 1.22kg
- Dimensions
- 220 x 150 x 44 mm
What is included
- BALTER X ECO Unmanaged PoE Switch with 10 x 100Mbps network ports (RJ45) incl. 8x PoE ports, 120 Watt, 230V AC - SW-8POE-S4
- AC power cord
- Quick start guide
