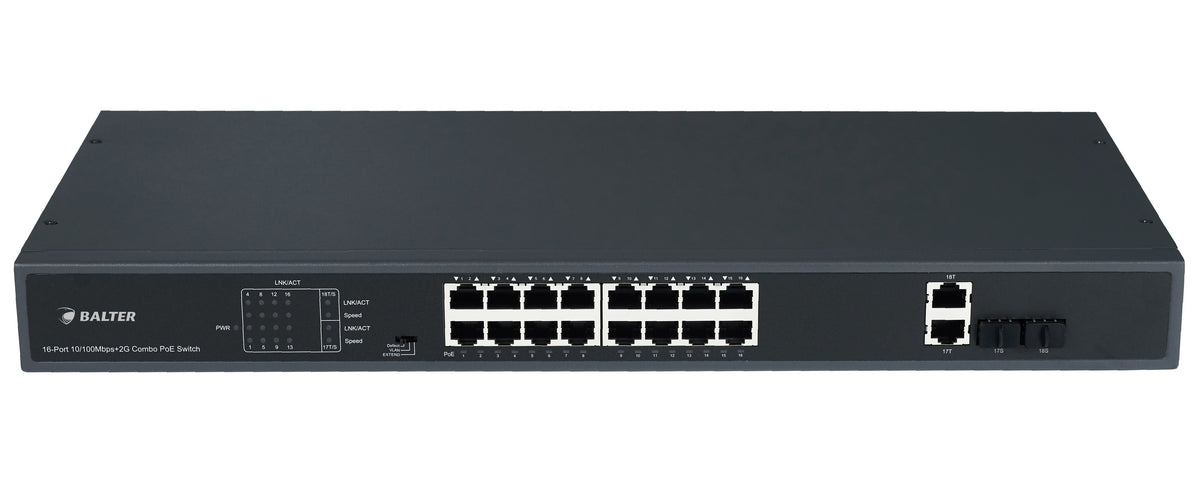

BALTER X ECO Unmanaged PoE Switch with 16 x 100Mbps PoE network ports (RJ45) + 2x 1000Mbps uplink ports, 250 Watt, 230V AC
Item number SW-16POE-S4
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 16x PoE ports
- 16x PoE ports
- 2x Gigabit uplink ports
- 2x Gigabit uplink ports
- PoE power 250W
- PoE power 250W
- Max. 30W PoE / port
- Max. 30W PoE / port
- VLAN support
- VLAN support
- Transmission up to 250m
- Transmission up to 250m
Description
BALTER X ECO Unmanaged PoE switch with 16 x 100Mbps PoE network ports (RJ45) + 2x 1000Mbps uplink ports, 250 Watt
16x PoE network switch with 2x Gigabit uplink ports (2x RJ45 / 2x SFP) for PoE and network applications. SW-16POE-S4 offers sixteen downlink ports and two Gigabit uplink Ethernet/fiber ports. The 16 downlink ports support the 802.3af standard and offer a maximum of 30 watts PoE output power per individual port with a total switch PoE power of max. 250W. The device supports VLAN, so that communication between downlink and uplink ports is completely separated. With the SW-16POE-S4 PoE switch, numerous security-relevant projects can be implemented, e.g., in factories, office buildings, hotels, schools, private homes, and other medium-sized and large properties.
- 16x 10/100Base-T Ethernet ports (PoE)
- 2x 10/100/1000BASE-T Ethernet uplink ports
- 2x 10/100/1000BASE-X SFP uplink ports
- Network standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
- PoE power supply: With 16x PoE RJ45 ports
- Each port supports max. 30 Watt PoE power; the total power is 250 Watt
- VLAN support and range extension up to 250m
- 7.2Gbps switch capacity; 16K MAC addresses
- Supports buffer optimization
- Plug & play, convenient and easy to use
- Support for desktop or wall installation
- Metal housing, 2x fans are installed
- Dimensions 440 x 207 x 45 mm
Technical data
- Downstream Ports
- 16x 10/100Base-T (PoE)
- PoE Ports
- 16x PoE
- Uplink Ports
- 2x 10/100/1000Base-T Ethernet Ports / 2x 10/100/1000Base-X SFP Ports
- PoE Output Power
- 30 Watts / port (max.), 54V DC
- PoE Power Budget
- 250 Watts
- Network Standard
- IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
- Switching Capacity
- 7.2Gbps
- Forwarding Rate
- 5.36Mpps
- Switching Scheme
- Store-and-forward
- Packet Buffer
- 4M
- MAC Table
- 16K
- PoE Standard
- 802.3af/at (PSE)
- PSE Type
- End-span
- Operating Mode
- Normal / VLAN / Extend
- Transmission Distance
- 100m / 250m
- Housing Material
- Metal housing
- Housing Color
- Black
- Operating Temperature / Humidity
- 0°C to 45°C / 5% to 95% (non-condensing)
- Power Supply
- 100 to 240V AC, 50/60Hz
- Power Consumption
- Under 280 Watts (including PoE)
- Weight
- 4.2kg
- Dimensions
- 440 x 207 x 44 mm
What is included
- BALTER X ECO Unmanaged PoE Switch with 16 x 100Mbps PoE network ports (RJ45) + 2x 1000Mbps uplink ports, 250 Watt, 230V AC - SW-16POE-S4
- AC power cord
- 2x mounting brackets
- User manual
