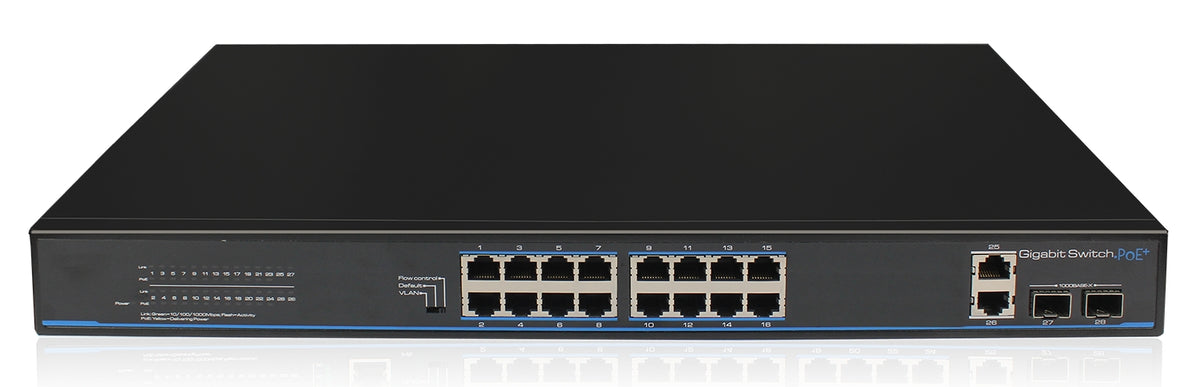

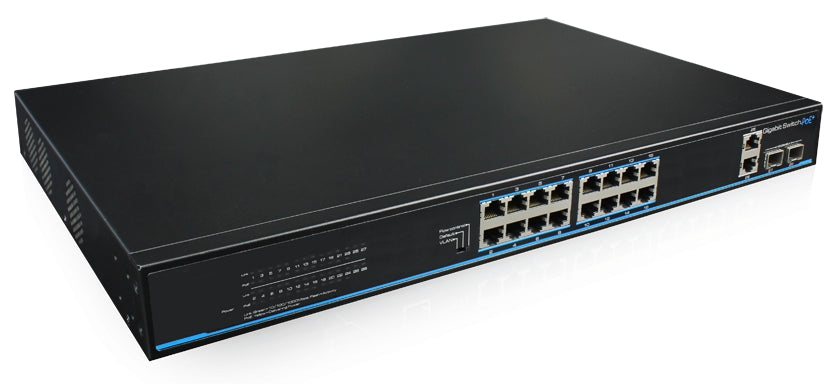

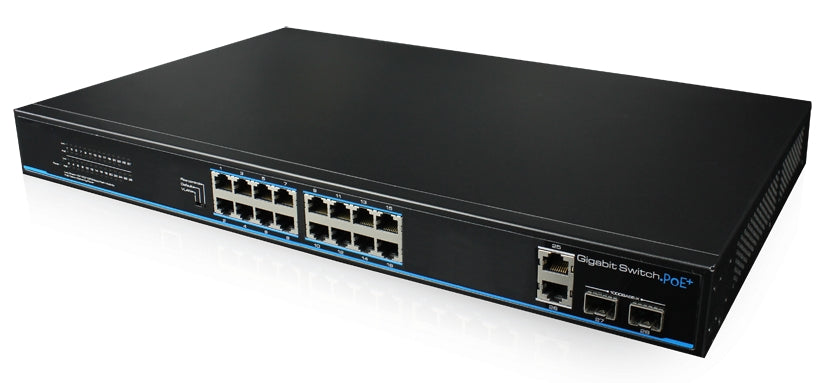

16-Port PoE+ Smart Gigabit Network Switch, 4x Gigabit Uplink Ports (RJ45 + SFP), 170W, 40Gbps Capacity, One-Key VLAN, Metal Housing – SW-16POE-S2
Item number SW-16POE-S2
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 16x Gigabit PoE ports
- 16x Gigabit PoE ports
- 4x Gigabit uplink ports
- 4x Gigabit uplink ports
- PoE power 170W
- PoE power 170W
- Max. 30W PoE / port
- Max. 30W PoE / port
- Auto-sensing function
- Auto-sensing function
- Transmission up to 100m
- Transmission up to 100m
Description
16x PoE network smart gigabit switch with 4x gigabit uplink ports (2x RJ45 + 2x SFP) for PoE and network applications. The SW-16POE-S2 offers sixteen gigabit downlink ports and four gigabit uplink ethernet/fiber ports. The 16 downlink ports support the 802.3af/at standard and offer a max. 30 watt PoE output per port with a total switch PoE power budget of 170W. The device supports One-Key VLAN, which ensures that communication between downlink and uplink ports is completely isolated. With the full gigabit switch SW-16POE-S2, numerous security-related projects can be implemented, e.g., in factories, office buildings, hotels, schools, private homes, and other medium to large-scale properties.
- 16x 10/100/1000Base-T Ethernet ports (PoE)
- 2x 10/100/1000BASE-T Ethernet uplink ports
- 2x 10/100/1000BASE-X SFP uplink ports
- Network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X
- PoE power supply: With 16x gigabit PoE RJ45 ports
- Each port supports max. 30 watts of PoE power; total power is 170 watts
- Auto-sensing function
- 6KV lightning protection, EFT testing
- Plug & Play, convenient and easy to use
- Supports desktop and wall mounting
Technical data
- Downstream Ports
- 16x 10/100/1000Base-T (PoE)
- PoE Ports
- 16x PoE
- Uplink Ports
- 2x 10/100/1000Base-T Ethernet Ports + 2x 10/100/1000Base-X SFP Ports
- PoE Output Power
- 30 Watt / port (max.), 54V DC
- PoE Power Budget
- 170 Watt
- Network Standard
- IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X
- Switch Capacity
- 40Gbps
- Forwarding Rate
- 28Mpps
- Switching Method
- Store and forward
- Packet Buffer
- 4M
- MAC Table
- 8K
- PoE Standard
- 802.3af/at (PSE)
- PSE Type
- End-span
- Pin Assignment
- 1/2(+), 3/6(-)
- Operation Mode
- Standard / VLAN / Flow Control
- Lightning Protection
- 6KV Execute: IEC61000-4-5
- ESD Protection
- 6KV contact discharge; 8KV air discharge; Execute: IEC61000-4-2
- Transmission Range
- 100m
- Housing Material
- Metal housing
- Housing Color
- Black
- Operating Temperature / Humidity
- -10°C to 45°C / 5% to 95% (non-condensing)
- Power Supply
- 100 to 240V AC, 50/60Hz
- Power Consumption
- Under 200 Watts (including PoE)
- Weight
- 3Kg
- Dimensions
- 442 x 285 x 44.5 mm
What is included
- 16x PoE+ Network Smart Gigabit Switch, 4x Gigabit Uplink Ports (RJ45 + SFP), 170W, 40Gbps capacity, One-Key VLAN, metal housing - SW-16POE-S2
- AC power cord
- 2x mounting brackets
- User manual
- Downstream Ports
- 16x 10/100/1000Base-T (PoE)
- PoE Ports
- 16x PoE
- Uplink Ports
- 2x 10/100/1000Base-T Ethernet Ports + 2x 10/100/1000Base-X SFP Ports
- PoE Output Power
- 30 Watt / port (max.), 54V DC
- PoE Power Budget
- 170 Watt
- Network Standard
- IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X
- Switch Capacity
- 40Gbps
- Forwarding Rate
- 28Mpps
- Switching Method
- Store and forward
- Packet Buffer
- 4M
- MAC Table
- 8K
- PoE Standard
- 802.3af/at (PSE)
- PSE Type
- End-span
- Pin Assignment
- 1/2(+), 3/6(-)
- Operation Mode
- Standard / VLAN / Flow Control
- Lightning Protection
- 6KV Execute: IEC61000-4-5
- ESD Protection
- 6KV contact discharge; 8KV air discharge; Execute: IEC61000-4-2
- Transmission Range
- 100m
- Housing Material
- Metal housing
- Housing Color
- Black
- Operating Temperature / Humidity
- -10°C to 45°C / 5% to 95% (non-condensing)
- Power Supply
- 100 to 240V AC, 50/60Hz
- Power Consumption
- Under 200 Watts (including PoE)
- Weight
- 3Kg
- Dimensions
- 442 x 285 x 44.5 mm
- 16x PoE+ Network Smart Gigabit Switch, 4x Gigabit Uplink Ports (RJ45 + SFP), 170W, 40Gbps capacity, One-Key VLAN, metal housing - SW-16POE-S2
- AC power cord
- 2x mounting brackets
- User manual
