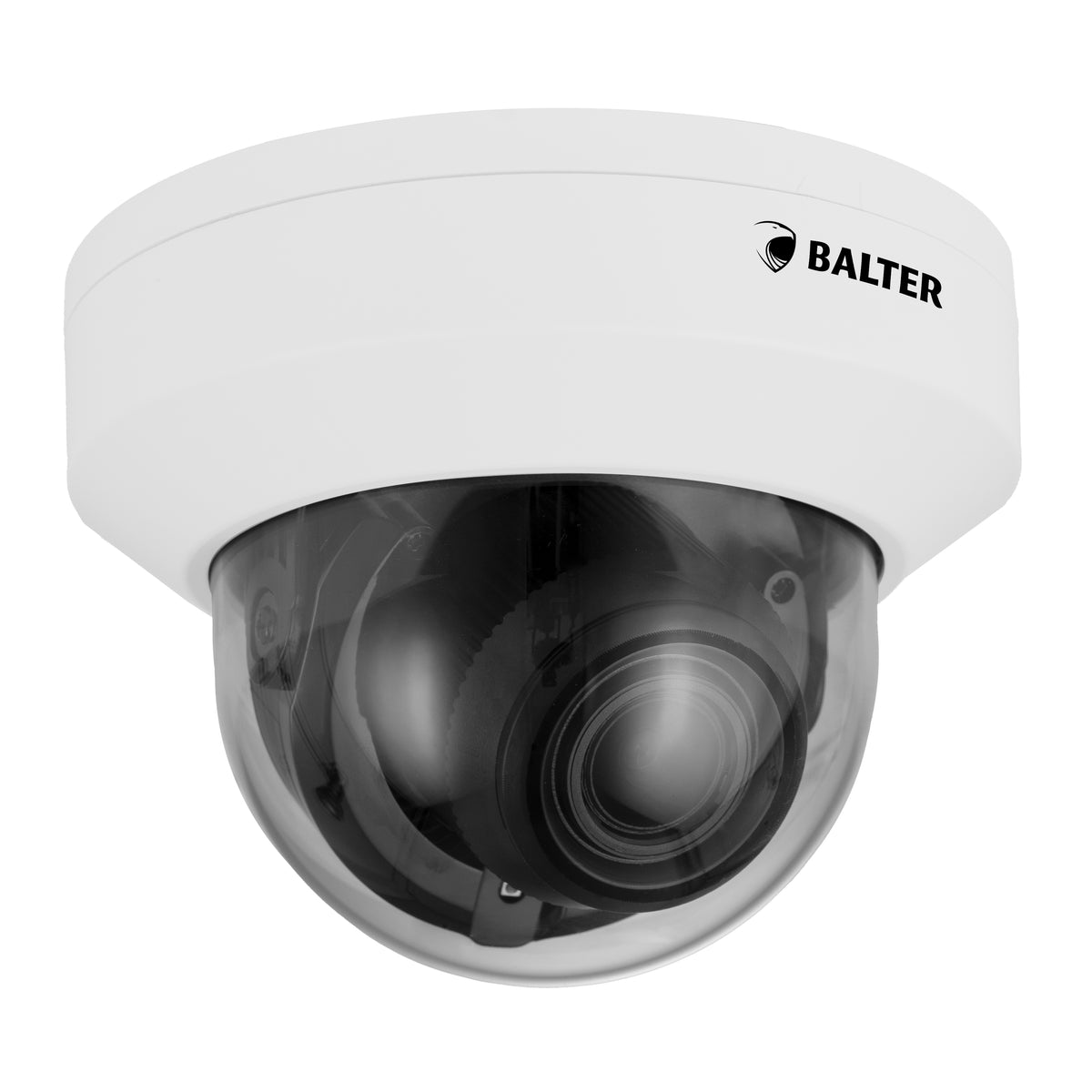

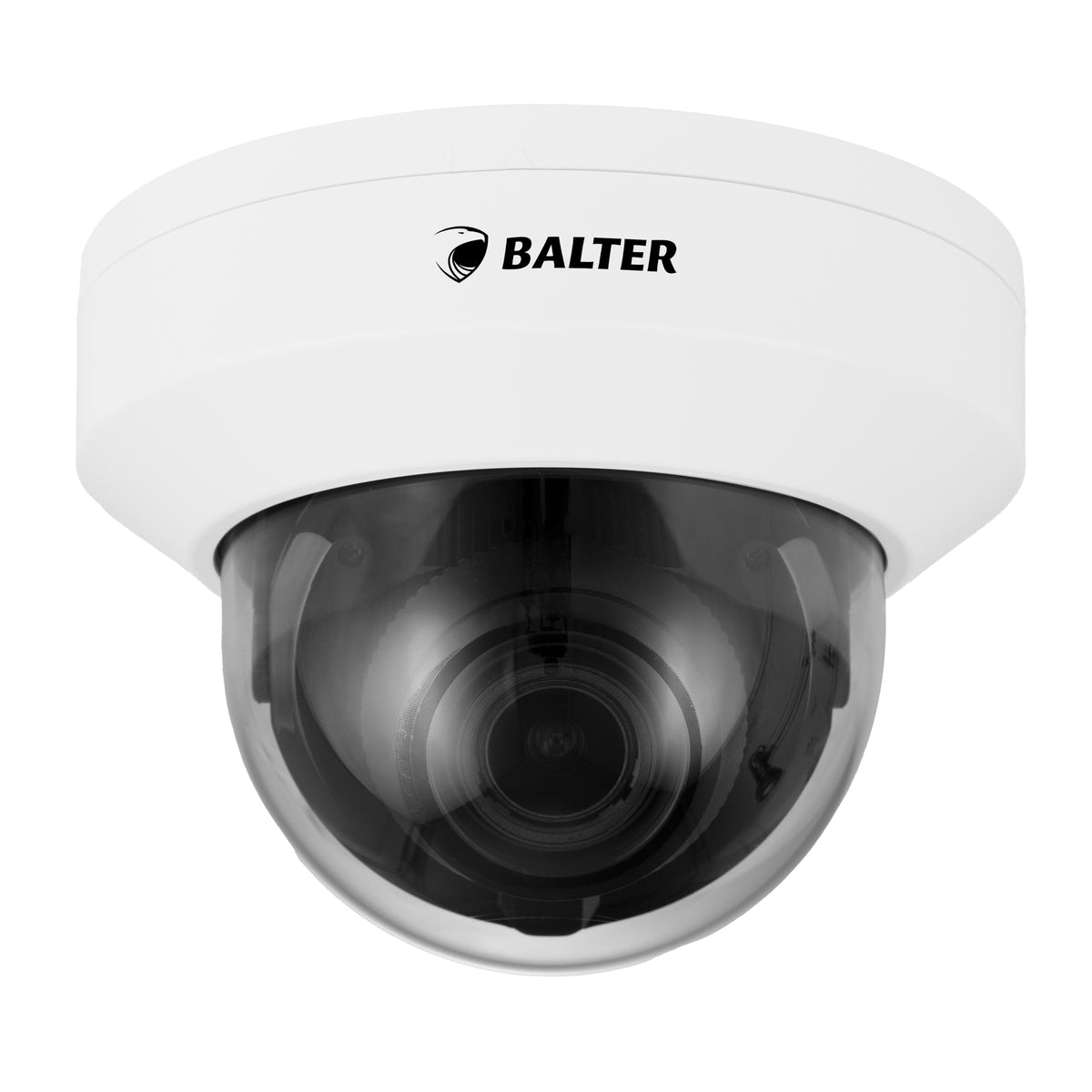

BALTER 8.0MP EXIR Analog HD Dome Camera, 2.8-12mm Motorized Zoom, 40m Night Vision, Smart-IR, 120dB WDR, Privacy Zones, TVI / AHD / CVI / CVBS, 12V DC

The HD-DP8141R is an 8.0-megapixel TVI / AHD / CVI / CVBS dome camera equipped with high-performance EXIR LEDs and a high-resolution 2.7-13.5mm motorized zoom megapixel lens with autofocus for indoor installation. The two powerful EXIR LEDs provide significantly better illumination in the dark at a range of up to 40m.

Other features of this indoor camera include Wide Dynamic Range with 120dB. With Wide Dynamic Range, objects that would normally only appear overexposed or darkened in an image can be displayed clearly in both bright and dark areas.

With the 2.7-13.5mm megapixel motorized zoom lens and progressive scan image sensor, the compact 8.0MP dome camera covers significantly larger areas without compromising image quality. TVI technology enables the high-resolution video signal to be transmitted directly to a recorder via coaxial cable over distances of up to 300m (RG59) or 500m (RG6). The camera offers convenient access to the on-screen menu via the existing coaxial cabling. All menu functions can be controlled and set via a recorder or control unit.

Even extreme temperature fluctuations are no problem for this motorized zoom dome camera. It operates without interruption in both very cold and very hot temperatures, ranging from -40°C to +60°C.

8.0 Megapixel Resolution
Thanks to the high 3840x2160p resolution, greater detail sharpness is achieved than was the case with Full HD cameras. This allows even more distant objects to be better identified. BALTER TVI cameras deliver images of larger areas without having to accept losses in image quality. The significantly higher depth of field is the key to obtaining usable images even in areas where classic cameras without megapixel resolution can no longer provide usable recordings.

Motorized lens with zoom and focus function
A motorized zoom lens significantly simplifies the installation and commissioning of the camera. The tedious adjustment of the lens directly on the camera is no longer necessary. It is sufficient to point the camera in the desired direction and then conveniently adjust the motorized zoom lens from the DVR. The focal length can also be changed just as easily and conveniently later on, according to requirements.

Wide Dynamic Range 120dB
The ability of a camera to deliver optimal images under extreme lighting conditions is known as Wide Dynamic Range. Especially in situations with strong backlighting, the WDR function is mandatory if the images are to be created without area-specific overexposure. In combination with the high-performance progressive scan CMOS sensor, this TVI camera has an excellent Wide Dynamic Range function with a high dynamic range. Thanks to the advanced WDR technology, images no longer appear color-distorted, but impress with sensationally good color reproduction and the avoidance of motion blur.

4-in-1 technology: TVI / CVI / AHD / CVBS
High-definition video via coax. TVI / CVI / AHD sends an almost latency-free 5.0MP video signal via RG59 coaxial cable. All Neostar 4-in-1 cameras and recorders offer the advantages of extremely high video resolution while being as easy to install and commission as standard analog surveillance systems. The possibility of significantly longer cable runs is also a major advantage of TVI / CVI / AHD systems. These can be used at distances of up to 500m (RG6) / 300m (RG59) from TVI / CVI / AHD recorders.

Smart IR
Smart IR produces clear and sharp images even in poor lighting conditions. Smart IR (smart infrared) automatically adjusts the amount of infrared light used to illuminate a scene. Depending on how close an object moves to the camera, the infrared illumination is increased or reduced in order to produce an optimal image for as long as possible.

Day/Night (ICR)
BALTER cameras with the Day/Night (ICR) function deliver sharp images even in poor lighting conditions and at night. During the day, the IR cut filter blocks infrared light to produce authentic color images. In poor lighting conditions and at night, the filter is removed and allows infrared light to pass through to deliver razor-sharp, well-defined black-and-white images.

Privacy Masking
Some areas are better left unrecorded. These can be particularly sensitive private areas, but also public spaces. With this camera, you can therefore easily define up to 4 privacy zones: this allows you to hide up to 4 freely definable areas independently of each other. These masked-out areas appear neither in the camera's live image nor in the stored recording.

On-screen menu control via coax
Simple control of the TVI on-screen menu settings via coax. This camera offers a user-friendly function for on-screen menu adjustment via existing coaxial cabling, eliminating the need to lay an additional data cable. Control and adjustment can be realized with any BALTER TVI recorder.

3-axis camera mount
This camera can be mounted on ceilings and walls effortlessly. It features an integrated 3-axis camera mount, which enables flexible installation in numerous locations both indoors and outdoors.
