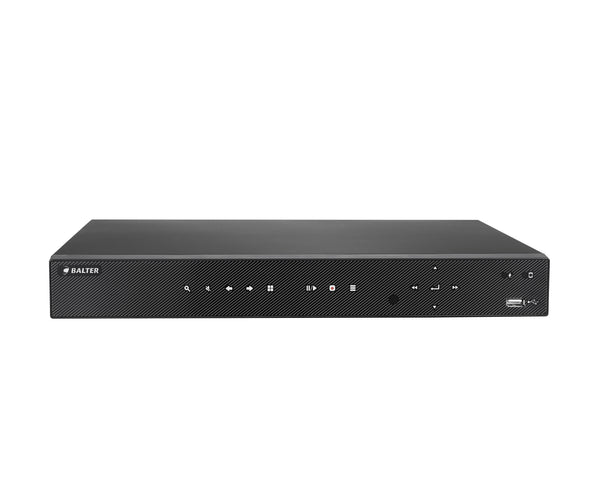

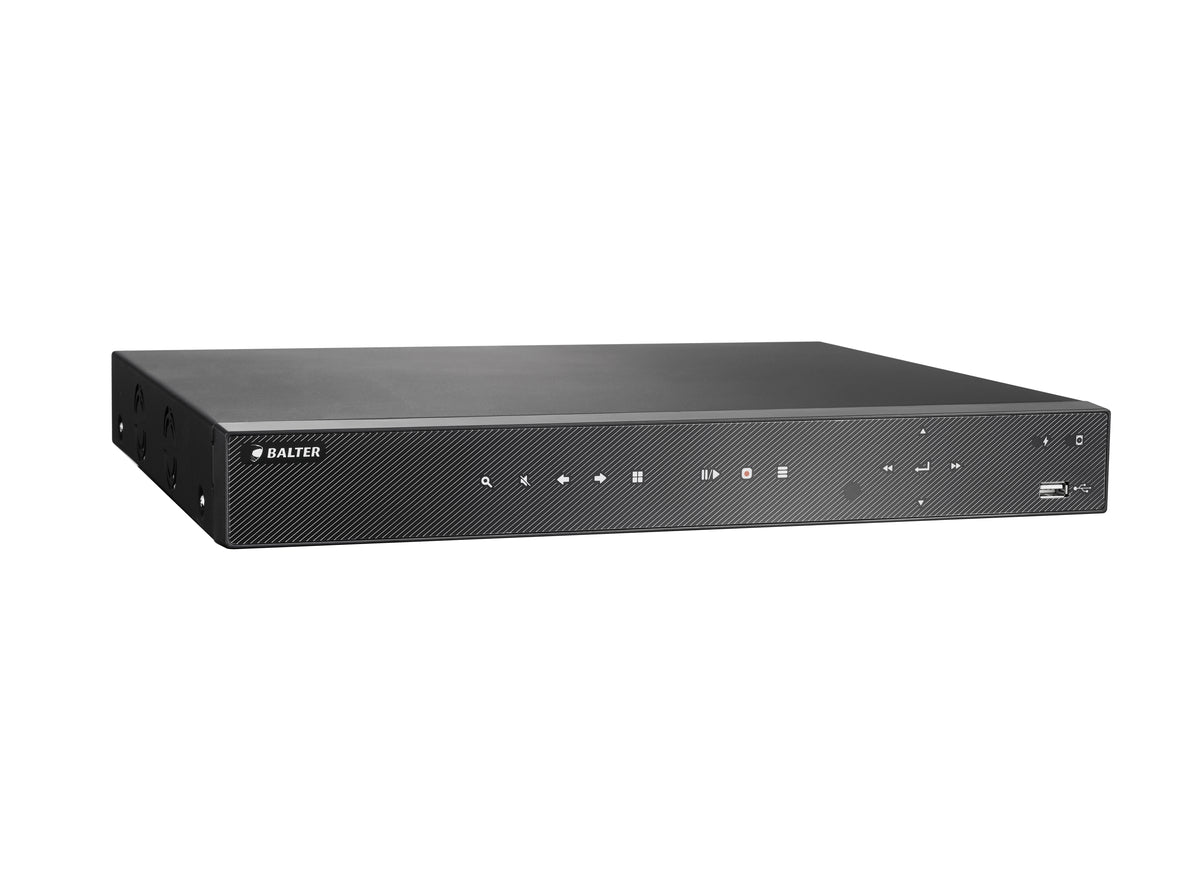

BALTER BHR-4316C Hybrid Video Recorder

• 16 + 8 camera channels
• TVI / AHD / CVI + IP
• Analog HD: 2592x1944p
• IP: 2592x1520p
• H.264 compression
• Intelligent search

• Peer-to-Peer (P2P)
• Balter CMS, PC / MAC
• iOS / Android apps
• Backup via USB, LAN
• HDMI 4K / VGA 1080p
• 12V DC

The BHR-4116C hybrid recorder is a professional surveillance solution that integrates seamlessly into any existing security architecture with 16 channels for Analog HD cameras up to 5 MP TVI or 1080p AHD & CVI, and 8 channels for IP cameras up to 4MP. Recordings are compressed using H.264. Two hard drives of up to 8TB each can be installed (16TB total). The iSmartVideo app (for Android and iOS) connects to the recorder via P2P and provides access to saved recordings and live camera images.

A user-friendly CMS allows for the interconnection and control of multiple recorders via Mac and PC; the web client allows the recorder to be operated via the internet without the need to install additional software. SMARTsearch finds relevant events in the recordings quickly and efficiently by searching for occurrences exclusively in a user-defined area. Small and medium-sized businesses benefit from this comprehensive and future-proof surveillance solution.

16 Analog HD channels

Up to 16 Analog HD cameras can be connected, capturing even the finest details such as faces and license plates with a resolution of up to 2592 x 1944p (TVI) or 1920 x 1080p (AHD/CVI).

8 IP channels

Additionally, 8 IP cameras, each with up to 4 MP, can be connected to the recorder via Ethernet to capture the surroundings in cinema quality at up to 2592 x 1520 pixels via the network.

Up to 16 TB of storage

Two internal hard drives with a capacity of up to 16TB can be installed. This storage capacity handles even the most demanding time-based tasks while keeping maintenance requirements to a minimum.

4K HDMI port

With the built-in 4K HDMI port, you can use the BHR-4116C with high-resolution 4K monitors and televisions. Thanks to the high resolution, you can keep an eye on even more live feeds simultaneously.

5MP resolution - So that nothing remains hidden from you

The BHR-4116C is capable of recording video in 5MP resolution on all 16 channels simultaneously and playing it back over the network. With this high resolution, you can zoom in on the smallest details and recognize fine features even in large crowds.

RAID2 – Maximum data security

Double is safer: RAID2 mirrors the files from one hard drive to the other in your recorder. This means all files are available on both hard drives simultaneously, keeping you on the safe side in the event of a hardware failure.

RAID is therefore the ultimate protection for your sensitive files and the best safeguard against data loss. Even the best hard drive can eventually malfunction, especially in professional operations where the load is high and time is short. With RAID2, you are on the safe side, as you always have a second backup copy available. An indispensable feature for both professionals and private users.

Motion detection

Save storage space and have the cameras record only when motion is detected. The integrated software recognizes movement and automatically starts a recording.

Internet connection without port forwarding or router configuration

The P2P (Peer-to-Peer) function allows you to access all network-enabled cameras and recorders from Balter without needing to forward ports or use paid DynDNS providers. Simply scan a QR code on the device or enter the P2P number manually into the app or CMS, and you will have access to your video surveillance system in seconds.

Full visibility, even on the go

Keeping an eye on your property has never been easier. With the Balter iSmartVideo app, you have the full power of your surveillance cameras at your fingertips even while on the move, allowing you to browse through all videos stored on your recorder's hard drive and play them back on your iOS and Android devices. Simply scan the QR code attached to your recorder... and you're done. You do not need to make any further settings and can immediately use the full functionality of your recorder while on the go.

Audio support

Thanks to 16 audio inputs, an additional microphone can be connected for each camera. This adds a new dimension to events, ensuring that important information lost in purely visual recordings is preserved.

Alarm inputs and outputs – the hub of your security concept

With 16 alarm inputs and 1 alarm output, your BHR-4116C acts as the control center for your personal security system, reliably controlling external devices such as sirens, barriers, and external motion detectors.

H.264

This common compression algorithm saves even detailed image material in a resource-efficient manner while still offering more than satisfactory image quality.

SMARTsearch

Intelligent search saves time and prevents false alarms. Search recordings for events in an area specified by you. Motion outside of this area (e.g., public streets) is ignored.

PTZ camera support

Thanks to the RS-485 interface and Coaxitron support, both Analog HD (TVI, AHD, CVI) and IP cameras with pan/tilt/zoom functionality can be controlled.

Email and push notifications – Notifies you automatically of incidents

Receive notifications while on the go when your system detects an event. With the email function, you can receive an email including an image of the event on your smartphone if desired, allowing you to take further steps immediately if necessary.

Cloud support – Seamless integration with your Dropbox

Easily incorporate your Balter recorder into your cloud strategy. Simply connect it to your Dropbox so that the recorder uploads images to your Dropbox at regular intervals and in the event of an alarm. This keeps you up to date on activity on your premises at a glance, without even having to watch a video.

The professional solution

Features previously reserved for significantly more expensive systems are included with your Balter recorder at no extra cost. With Balter CMS, you can control your entire surveillance system conveniently from your Windows PC or Mac. All functions available directly on the device can be easily operated from your computer. You can even interconnect multiple recorders into one system, ensuring you are well-prepared for the future.

Web client - control your surveillance system from any PC

Control your Balter recorder from any PC with internet access—no additional software installation required. Simply access your recorder via the internet to control connected cameras and search through recordings. This gives you full access to your security system even while on vacation or at work.
