IP X outdoor cameras
BALTER X ECO IP outdoor camera with 4.0MP, 2.7-13.5mm motorized zoom, autofocus, 50m night vision, 120dB WDR, ROI, alarm I/O, audio I/O, PoE/12V DC, IK10, IP67
Item number IP-T1600IRE
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 4.0MP (2688x1520p)
- 4.0MP (2688x1520p)
- 2.7-13.5mm motorized zoom
- 2.7-13.5mm motorized zoom
- 1/2.7" CMOS, autofocus
- 1/2.7" CMOS, autofocus
- 25fps at 2688x1520p
- 25fps at 2688x1520p
- Night vision up to 50m
- Night vision up to 50m
- WDR 120dB, Cloud P2P
- WDR 120dB, Cloud P2P
Description
BALTER X ECO 4.0MP IP outdoor camera, 2.7-13.5mm AF motorized zoom, night vision 50m, WDR 120dB, RJ45 + BNC outputs
- IP outdoor camera with 4.0MP resolution
- 2.7-13.5mm motorized zoom lens with autofocus
- Night vision range up to 50 meters
- 1/2.7" StarLight sensor
- Wide Dynamic Range (WDR) 120dB
- Support for video formats Ultra 265, H.265, H.264, and MJPEG
- Real-time recording in 4.0MP resolution: 2688 x 1520p @ 25fps; 2560 x 1440p @ 25fps
- Multilingual on-screen menu (German, English, etc.)
- Easy commissioning via Cloud P2P (QR code)
- 4x privacy mask zones, motion detection
- 8x Region of Interest zones, calendar, email notifications
- 3D and 2D digital noise reduction, flip, Smart IR
- WebViewer, iOS + Android apps, PC + MacOS CMS
- Basic detection:
- Motion detection, tampering alarm, audio detection
- 2-way audio transmission (bidirectional)
- Alarm input/output 1/1 + audio input/output 1/1
- microSD card slot up to 256GB
- ANR, NAS, ONVIF (Profile S, Profile G, and Profile T)
- Vandal-proof IK10 (metal housing)
- Protection against water and dust IP67
- Power supply via PoE and 12V DC
- Power consumption up to 8 watts
- Video outputs: RJ45 and BNC

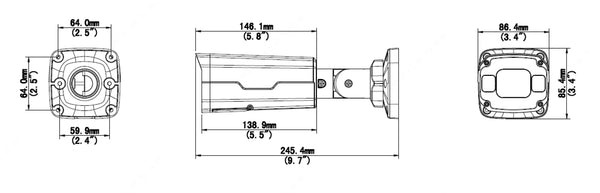

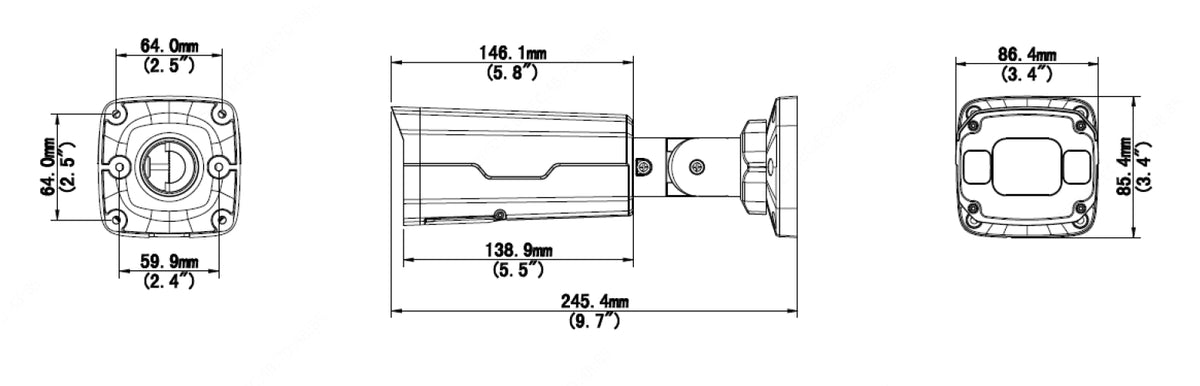

- Camera dimensions 245.4 x 86 x 72 mm
Technical data
- Camera Type
- IP Outdoor Camera
- Image Sensor
- 1/2.7" progressive scan CMOS
- Resolution
- 4.0 Megapixel
- Aspect Ratio
- 16:10
- Active Pixels
- 2688 (H) x 1520 (V)
- Frame Rate
- 25 fps at 2688 x 1520p; 25 fps at 2560 x 1440p; 25 fps at 2304 x 1296p; 25 fps at 1920 x 1080p
- Resolution Scaling
- 2688 x 1520p (Main Stream) to 352 x 288p (Third Stream)
- Video Compression Method
- Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile
- Baseline profile, Main profile, High profile
- Minimum Illumination
- Color: 0.003Lux (F1.2, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD-LEDs, Auto / Manual
- IR LED Technology
- 850nm, Smart IR
- Illumination Range
- 50 meters
- Dynamic Range
- 56dB
- Dynamic Range (WDR on)
- 120dB
- Video Output (Service)
- BNC (960H)
- Optical Zoom
- 5X
- Lens
- 2.7 - 13.5mm motorized zoom
- Lens Type
- Day/Night motorized zoom lens (IR), remote focus and zoom, auto-focus, day/night (IR)
- Viewing Angle
- 106.90° to 30.60° (horizontal), 56.25° to 17.75° (vertical)
- On-Screen Display (OSD)
- Web interface, CMS and Network Video Recorder
- Camera Title
- Supported
- Day/Night
- Auto (ICR) / Day / Night / Disabled
- Overexposure Protection
- Smart IR
- Backlight Compensation
- BLC
- Highlight Compensation
- HLC
- Wide Dynamic Range
- WDR 120dB
- Noise Reduction
- 2D-DNR / 3D-DNR
- Low Light Enhancement
- Supported
- White Balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain Control
- AGC
- Mirroring
- Normal / Vertical / Horizontal / 180° / 90° clockwise / 90° counter-clockwise
- Motion Detection
- Supported
- Electronic Shutter Speed
- Auto / Manual (1 ~ 1/100,000s)
- Privacy Masking
- 4x privacy zones
- Region of Interest
- 8x ROI zones
- Tampering Alarm
- Supported
- Basic Event Detection
- Motion detection, tampering alarm, audio detection
- Email Notification
- Supported
- Video Streaming
- Main Stream: 4MP @ 25fps; 3MP @ 25fps; 1080P @ 30/25fps; Sub Stream: 720P @ 30fps; D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps; Third Stream: D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps
- Streaming Method
- Unicast / Multicast
- Streaming Protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Peer-to-Peer
- Cloud P2P
- User Access
- 5 or more simultaneous user accesses
- Web Viewer
- Plug-in required for live view: IE9+, Chrome 41 and lower, Firefox 52 and lower; Plug-in-free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Security
- Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Additional Camera Features
- Support for 9:16 corridor mode, pre-alarm + post-alarm, mirror, rotate
- Languages
- German, English, French, Turkish, etc.
- Housing Color
- White
- Camera Alignment
- 3-axis (wall and ceiling mount)
- Adjustment Angle
- Pan 0° ~ 360°; Tilt 0° ~ 90°; Rotate 0° ~ 360°
- Memory Card
- Up to 256GB microSD card
- Data Storage on NAS
- ANR, NAS (NFS)
- Interface Standard
- ONVIF (Profile S, Profile G, Profile T), API
- Audio Input / Output
- 1 input: impedance 35kΩ; amplitude 2V [p-p]; 1 output: impedance 600Ω; amplitude 2V [p-p]
- Alarm Input / Output
- 1 input / 1 output
- 2-Way Audio Communication
- Supported
- Audio Compression
- G.711
- Audio Bitrate
- 8kHz
- Network
- RJ-45 (10/100M Ethernet interface)
- Surge Protection
- 2KV
- Vandal Resistance
- IK10
- Protection Class
- IP67
- Operating Temperature / Humidity
- -30°C to +60°C / 0% to 95% (non-condensing)
- Power Supply
- 12V DC or PoE (IEEE 802.3af compatible)
- Power Consumption
- Max. 8.0 Watts
- Dimensions
- 245.4 x 86 x 72 mm
- Weight
- 920g
What is included
- BALTER X ECO IP outdoor camera with 4.0MP, 2.7-13.5mm motorized zoom, autofocus, 50m night vision, 120dB WDR, ROI, alarm I/O, audio I/O, PoE/12V DC, IK10, IP67 - IP-T1600IRE
- Allen key
- Screw/plug set
- User manual / quick start guide
