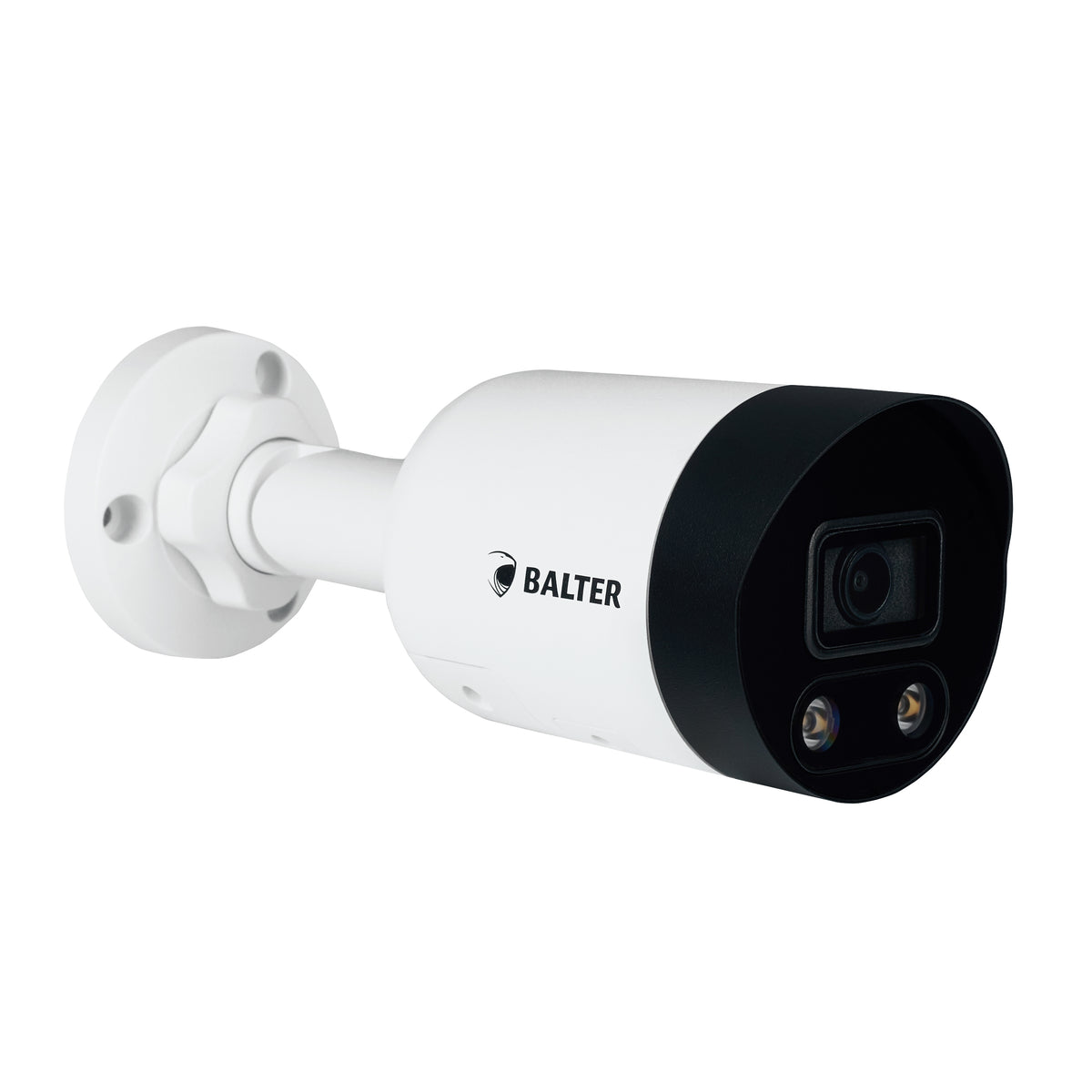

BALTER X ECO IP Outdoor Camera with 5.0MP, 2.8mm, 50m Night Vision, 120dB WDR, Microphone, PoE, IP67
Item number IP-T18IRP
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 5.0MP (2880×1620p)
- 5.0MP (2880×1620p)
- 2.8mm wide-angle
- 2.8mm wide-angle
- 1/2.7" CMOS
- 1/2.7" CMOS
- 25fps at 5MP
- 25fps at 5MP
- Night vision up to 50m
- Night vision up to 50m
- WDR 120dB
- WDR 120dB
Description
BALTER X ECO IP outdoor camera with 5.0MP, 2.8mm, 50m night vision, WDR 120dB, microphone, PoE, IP67
- IP outdoor camera with 5.0MP resolution
- 2.8mm wide-angle megapixel lens
- Night vision range up to 50 meters
- Easystar low light technology for better image quality in low light
- Wide Dynamic Range (WDR) 120dB
- Supports video formats Ultra 265, H.265, H.264 and MJPEG
- Frame rate at 5.0MP resolution: 2880 × 1620p @ 25fps
- Frame rate at 4.0MP resolution: 2560 × 1440p @ 25fps
- Frame rate at 3.0MP resolution: 2304 × 1296p @ 30fps
- Multilingual on-screen menu
- Easy commissioning via software / CMS
- 4 privacy zones, ROI support
- 2D and 3D digital noise reduction, Smart IR
- Web viewer, iOS + Android apps, PC + MacOS CMS
-
Basic video analytics:
- Motion detection
- Line crossing
- Intrusion detection
- Tampering alarm
- Audio detection
- Built-in microphone
- No loudspeaker / no two-way audio function
- microSD card slot up to 512GB
- ANR, NAS, ONVIF (Profile S, G, T)
- Protection against water and dust IP67
- Power supply via PoE and 12V DC
- Power consumption up to approx. 5.6 watts
Technical data
- Camera type
- IP outdoor camera
- Image sensor
- 1/2.7" progressive scan CMOS
- Resolution
- 5.0 Megapixels
- Aspect ratio
- 16:9
- Active pixels
- 3840 (H) x 2160 (V)
- Frame rate
- 5.0MP resolution: 2880 × 1620p @ 25fps; 4.0MP resolution: 2560 × 1440p @ 25fps; 3.0MP resolution: 2304 × 1296p @ 30fps
- Resolution scaling
- 2880 x 1620p (Main Stream) to 640 x 360p (Third Stream)
- Video compression method
- Ultra H.265, H.265, H.264, MJPEG
- H.264 code profile
- Baseline profile, Main profile, High profile
- Minimum illumination
- Color: 0.01Lux (F2.0, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD LEDs, Auto / Manual
- IR LED technology
- 850nm, Advanced IR, NightHawk
- Illumination range
- 40 meters
- Dynamic range
- 56dB
- Dynamic range (WDR on)
- 120dB
- Lens
- 2.8mm
- Lens type
- Day/Night lens (IR)
- Field of view
- 112.4° (horizontal), 60.1° (vertical)
- OSD menu
- Web interface, CMS and Network Video Recorder
- Camera title
- Supported
- Day/Night
- Auto (ICR) / Day / Night / Disabled
- Overexposure protection
- Smart IR
- Backlight compensation
- BLC
- Highlight compensation
- HLC
- Wide Dynamic Range
- WDR 120dB
- Noise reduction
- 2D-DNR / 3D-DNR
- Low light enhancement
- Supported
- White balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain control
- AGC
- Anti-fog
- Digital anti-fog
- Mirroring
- Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Counter-clockwise
- Image dewarping
- Supported
- Motion detection
- 4x motion detection zones
- Electronic shutter speed
- Auto / Manual (1 ~ 1/100,000s)
- Privacy masking
- 4x privacy zones
- Region of interest
- 8x ROI zones
- Tamper alarm
- Supported
- Intelligent video analysis
- Based on target classification, intelligent intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc. Precise focus on humans and/or motor vehicles/cars and non-motorized vehicles
- Video content analysis
- Line crossing detection, intrusion, area entry, area exit
- Basic event detection
- Motion detection, tampering alarm, audio detection
- Behavioral analysis
- People counting, support for counting people flows and monitoring crowds
- Email notification
- Supported
- Video streaming
- Sub stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
- Streaming method
- Unicast / Multicast
- Streaming protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
- Peer-to-peer
- Cloud P2P
- User access
- 5 or more simultaneous user accesses
- Web viewer
- Plug-in required for live view: IE9+, Chrome 41 and lower, Firefox 52 and lower; Plug-in-free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Security
- Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Languages
- 13 languages - German, English, French, Turkish, etc.
- Housing color
- White
- Camera orientation
- 3-axis (wall and ceiling mounting)
- Adjustment angle
- Pan 0° ~ 360°; Tilt 0° ~ 90°; Rotate 0° ~ 360°
- Memory card
- Up to 256GB microSD card
- Data offloading to NAS
- ANR, NAS (NFS)
- Interface standard
- ONVIF (Profile S, Profile G, Profile T), API, SDK
- Microphone
- Built-in microphone
- Speaker
- Built-in speaker
- 2-way audio communication
- Supported
- Audio compression
- G.711
- Audio bitrate
- 8kHz
- General functions
- Alarm light, audio warnings, reset button
- Network
- RJ-45 (10/100M Ethernet interface)
- Surge protection
- 4KV
- Protection class
- IP67
- Operating temperature / humidity
- -30°C to +60°C / 0% to 95% (non-condensing)
- Power supply
- 12V DC or PoE (IEEE 802.3af compatible)
- Power consumption
- Max. 10.5 watts
- Dimensions
- 190 x 73 x 71 mm
- Weight
- 400g
What is included
- BALTER X PRO Easystar IP outdoor camera
- Allen key
- Screw/anchor set
- User manual / quick start guide
