IP X Eyeball Cameras

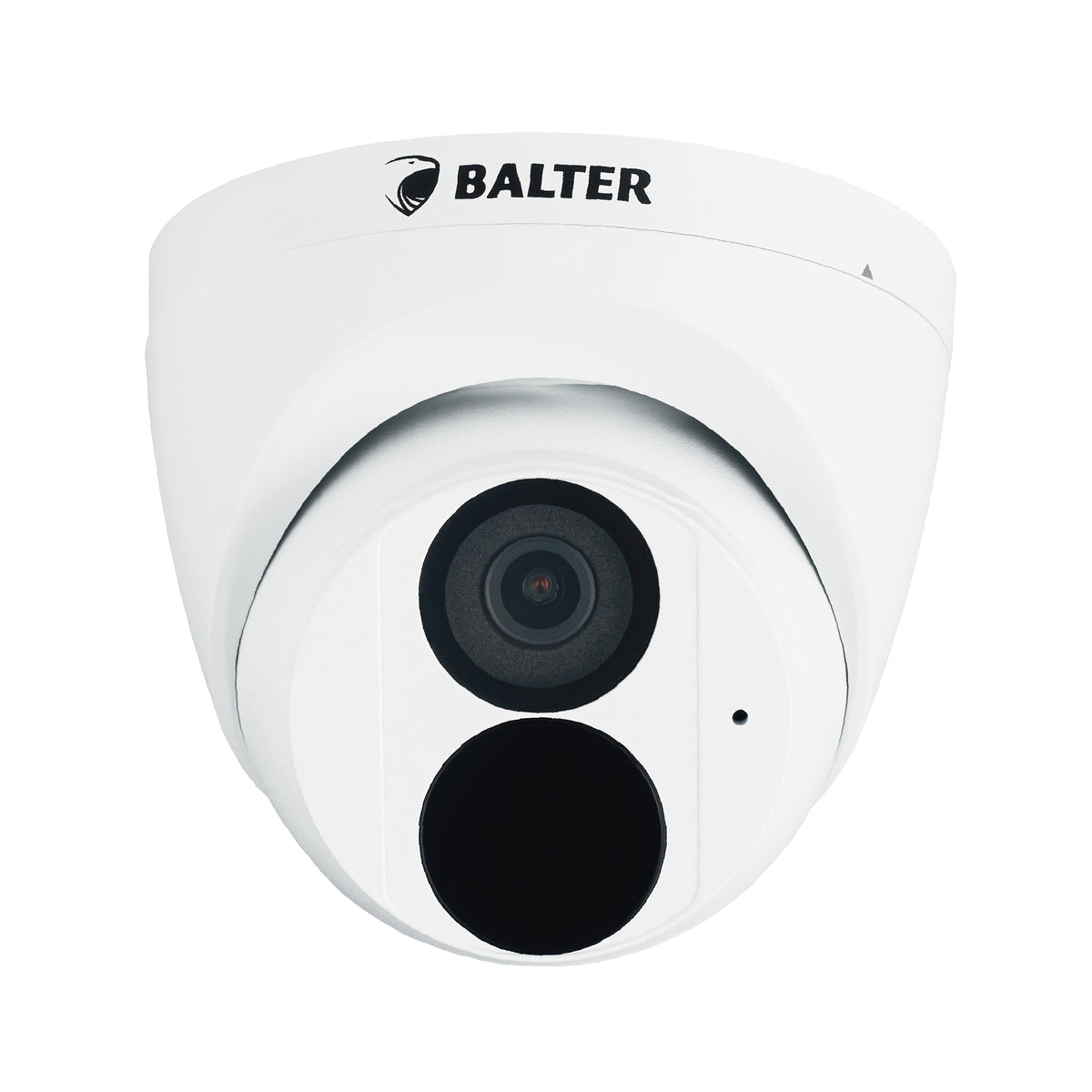

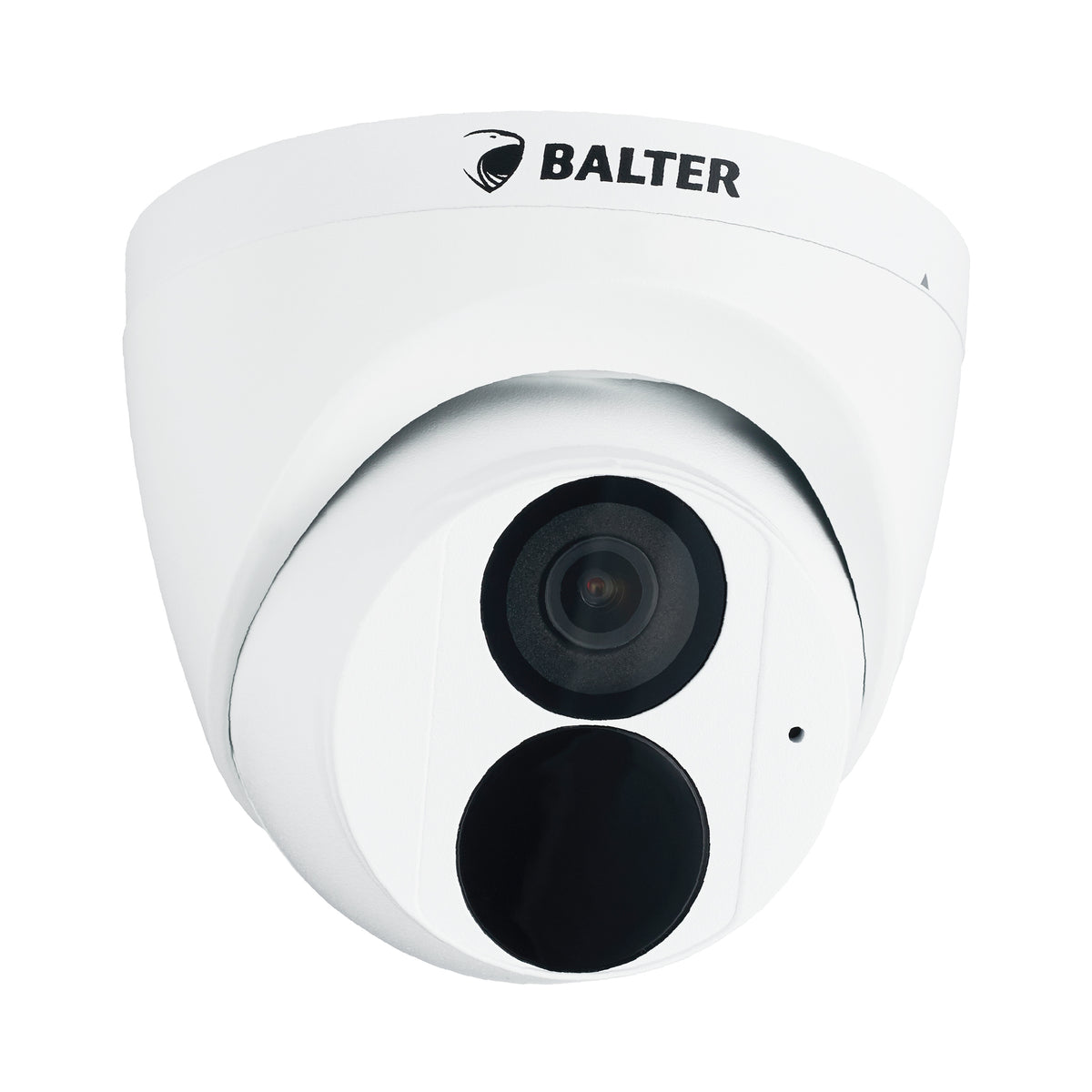

BALTER X ECO IP Eyeball camera with 5.0MP resolution, 2.8mm lens, 30m night vision, 120dB WDR
Item number IP-E13IRE
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 5.0MP (2880×1620p)
- 5.0MP (2880×1620p)
- 2.8mm lens
- 2.8mm lens
- 1/2.7" CMOS sensor
- 1/2.7" CMOS sensor
- 25fps @ 5MP
- 25fps @ 5MP
- Night vision up to 30m
- Night vision up to 30m
- WDR 120dB
- WDR 120dB
Description
BALTER X ECO IP Eyeball camera with 5.0MP resolution, 2.8mm lens, 30m night vision, 120dB WDR
- IP eyeball camera with 5.0MP resolution
- 2.8mm wide-angle lens
- Night vision range up to 30 meters, 1/2.7" sensor
- Wide Dynamic Range (WDR) 120dB
- Easystar technology for excellent image quality in low light
- Support for Ultra 265, H.265, H.264, and MJPEG video formats
- Frame rate at 5MP resolution: 2880 × 1620p @ 25fps
- Multi-language OSD menu
- Flexible integration via ONVIF, API, and SDK
- Supports Corridor Mode (9:16) for hallways and narrow areas
- 2D/3D digital noise reduction, Smart IR, ROI, privacy mask
- WebViewer, iOS + Android apps, PC + Mac CMS
Smart behavioral analysis and identification
- Perimeter protection including line crossing
- Intrusion detection (intrusion into defined areas)
- Motion detection, audio detection
- Advanced object detection (e.g., human detection)
- microSD card slot up to 512GB
- ANR (Automatic Network Replenishment) for recording backup
- Protection against water and dust IP67
- Power supply via PoE and 12V DC
- Power consumption approx. 4.4 watts
- Camera dimensions Ø118 × 95 mm
Technical data
- Camera type
- IP Eyeball camera
- Image sensor
- 1/3" progressive scan CMOS
- Resolution
- 4.0 Megapixel
- Aspect ratio
- 16:10
- Active pixels
- 2688 (H) x 1520 (V)
- Frame rate
- 5 MP (2880 × 1620), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
- Resolution scaling
- 2688 x 1520p (main stream) to 352 x 288p (sub stream)
- Image compression method
- Ultra 265, H.265, H.264, MJPEG
- H.264 code profile
- Baseline profile, Main profile, High profile
- Minimum illumination
- Color: 0.005Lux (F1.6, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD LEDs, auto / manual
- IR LED technology
- 850nm, Smart IR
- Illumination range
- 30 meters
- Dynamic range
- 56dB
- Dynamic range (WDR on)
- 120dB
- Lens
- 2.8mm
- Lens type
- Day/night lens (IR)
- Viewing angle
- 110° (horizontal), 58.7° (vertical)
- On-screen menu
- Web interface, CMS and network video recorder
- Camera title
- Supported
- Day/night
- Auto (ICR) / Day / Night / Disabled
- Overexposure protection
- Smart IR technology
- Backlight compensation
- BLC
- Highlight compensation
- HLC
- Wide dynamic range
- WDR 120dB
- Noise reduction
- 2D-DNR / 3D-DNR
- Low light gain
- Supported
- White balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain control
- AGC
- Anti-fog
- Digital anti-fog
- Mirroring
- Normal / Vertical / Horizontal / 180°
- Image rectification / Dewarping
- Supported
- Motion detection
- 4x motion detection zones
- Electronic shutter speed
- Auto / Manual (1 ~ 1/100,000s)
- Privacy masking
- 4x privacy zones
- Region of interest
- 4x ROI zones
- Tamper alarm
- Supported
- Basic event detection
- Line crossing (based on human detection), intrusion (based on human detection), motion detection, ultra-motion detection, tamper alarm, audio detection
- Email sending
- Supported
- Streaming protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
- Web viewer
- Live view with plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Live view without plug-in: Chrome 57+, Firefox 58+, Edge 16+
- Security
- Password protection, secure password, HTTPS encryption, export of operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Languages
- 13 languages
- Surge protection
- 4KV
- Protection class
- IP67
- Power supply
- DC 12V, PoE
- Power consumption
- Max. 4.4 Watts
- Dimensions
- 118 (D) x 95 (H) mm
- Weight
- 320g
What is included
- BALTER X ECO 5.0MP IP Eyeball Camera
- Drilling template
- Allen key
- Screw set
- Quick guide
- Camera type
- IP Eyeball camera
- Image sensor
- 1/3" progressive scan CMOS
- Resolution
- 4.0 Megapixel
- Aspect ratio
- 16:10
- Active pixels
- 2688 (H) x 1520 (V)
- Frame rate
- 5 MP (2880 × 1620), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
- Resolution scaling
- 2688 x 1520p (main stream) to 352 x 288p (sub stream)
- Image compression method
- Ultra 265, H.265, H.264, MJPEG
- H.264 code profile
- Baseline profile, Main profile, High profile
- Minimum illumination
- Color: 0.005Lux (F1.6, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD LEDs, auto / manual
- IR LED technology
- 850nm, Smart IR
- Illumination range
- 30 meters
- Dynamic range
- 56dB
- Dynamic range (WDR on)
- 120dB
- Lens
- 2.8mm
- Lens type
- Day/night lens (IR)
- Viewing angle
- 110° (horizontal), 58.7° (vertical)
- On-screen menu
- Web interface, CMS and network video recorder
- Camera title
- Supported
- Day/night
- Auto (ICR) / Day / Night / Disabled
- Overexposure protection
- Smart IR technology
- Backlight compensation
- BLC
- Highlight compensation
- HLC
- Wide dynamic range
- WDR 120dB
- Noise reduction
- 2D-DNR / 3D-DNR
- Low light gain
- Supported
- White balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain control
- AGC
- Anti-fog
- Digital anti-fog
- Mirroring
- Normal / Vertical / Horizontal / 180°
- Image rectification / Dewarping
- Supported
- Motion detection
- 4x motion detection zones
- Electronic shutter speed
- Auto / Manual (1 ~ 1/100,000s)
- Privacy masking
- 4x privacy zones
- Region of interest
- 4x ROI zones
- Tamper alarm
- Supported
- Basic event detection
- Line crossing (based on human detection), intrusion (based on human detection), motion detection, ultra-motion detection, tamper alarm, audio detection
- Email sending
- Supported
- Streaming protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
- Web viewer
- Live view with plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Live view without plug-in: Chrome 57+, Firefox 58+, Edge 16+
- Security
- Password protection, secure password, HTTPS encryption, export of operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Languages
- 13 languages
- Surge protection
- 4KV
- Protection class
- IP67
- Power supply
- DC 12V, PoE
- Power consumption
- Max. 4.4 Watts
- Dimensions
- 118 (D) x 95 (H) mm
- Weight
- 320g
- BALTER X ECO 5.0MP IP Eyeball Camera
- Drilling template
- Allen key
- Screw set
- Quick guide
