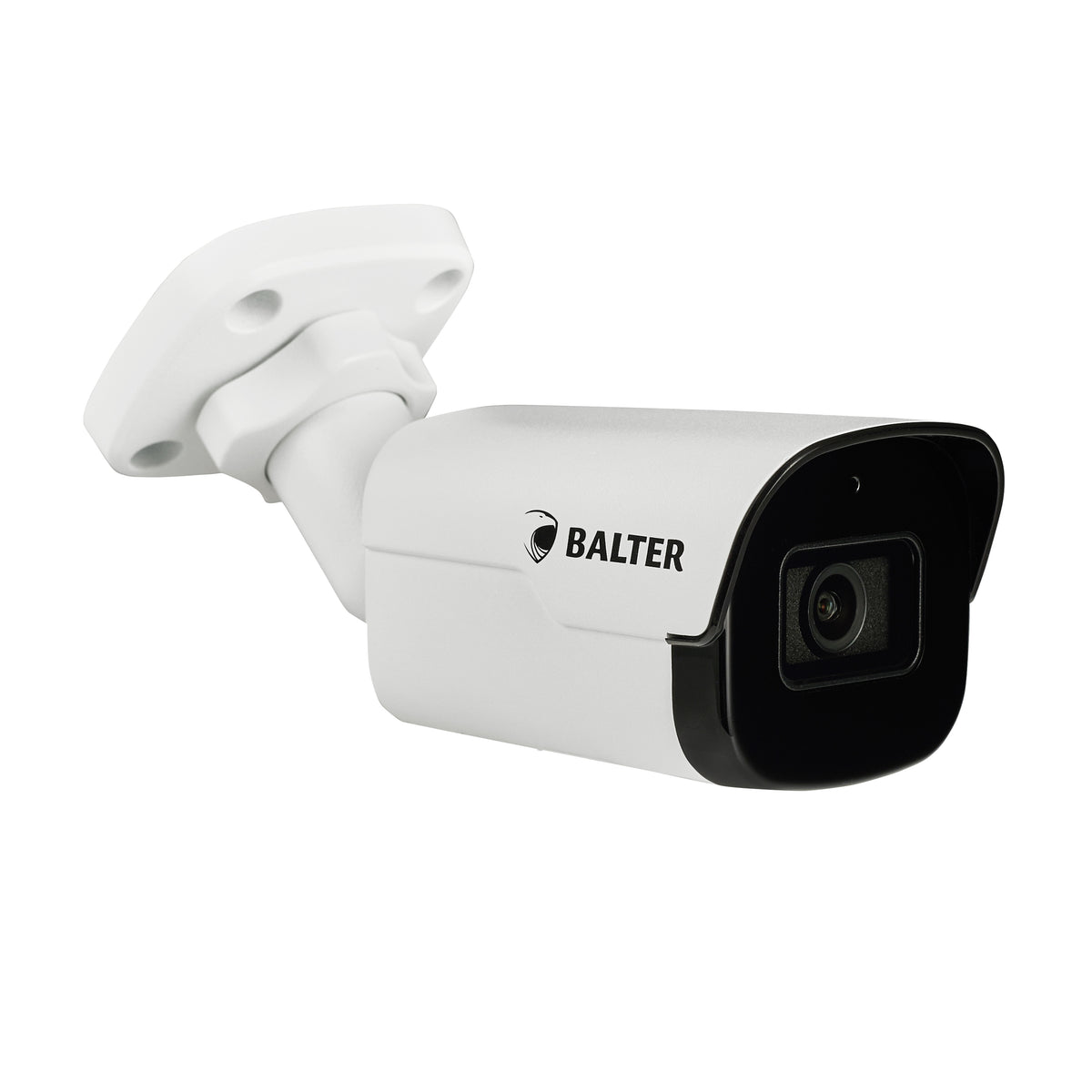

BALTER X PRO NightHawk IP Outdoor Camera with 4.0MP, 2.8mm, 40m night vision, Ultra Low Light, WDR 120dB, Deep Learning AI, smart behavior analysis, PoE/12V DC, IP67
Item number IP-T17IRP
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 4.0MP (2688x1520p)
- 4.0MP (2688x1520p)
- 2.8mm wide-angle
- 2.8mm wide-angle
- 1/3" CMOS, ROI
- 1/3" CMOS, ROI
- 25fps at 2688x1520p
- 25fps at 2688x1520p
- Night vision up to 40m
- Night vision up to 40m
- WDR 120dB, Cloud P2P
- WDR 120dB, Cloud P2P
Description
BALTER X PRO NightHawk 4.0MP IP Outdoor Camera, 2.8mm AF, Night Vision 40m, WDR 120dB, Deep Learning AI
- IP outdoor camera with 4.0MP resolution
- 2.8mm wide-angle lens
- Night vision range up to 40 meters
- NightHawk - Ultra Low Light, 1/3" StarLight sensor
- Wide Dynamic Range (WDR) 120dB
- Support for video formats Ultra H.265, H.265, H.264 and MJPEG
- Real-time recording in 4.0MP resolution: 2688 x 1520p @ 25fps; 2560 x 1440p @ 25fps
- Frame rate at 4.0MP resolution: 2688 x 1520p @ 25fps
- Frame rate at 2.0MP resolution: 1920 x 1080p @ 25fps
- Multilingual on-screen menu (German, English, etc.)
- Simple setup via Cloud P2P (QR code)
- 4x privacy mask zones, 4x motion detection zones
- 8x Region of Interest zones, calendar, email notifications
- 3D and 2D digital noise reduction, mirroring, Smart IR
- WebViewer, iOS + Android apps, PC + MacOS CMS
- Smart behavior analysis and identification:
- Intelligent perimeter protection, including detection of line crossing, intrusion, entering and exiting areas
- Based on object classification, intelligent intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc.
- People counting, support for counting people flow and monitoring crowds
- Precise focus on people and/or motor vehicles/cars and non-motorized vehicles
- Detection of line crossing, intrusion, entering area, exiting area
- Motion detection, tampering alarm, audio detection
- microSD card slot up to 256GB
- Built-in microphone
- ANR, NAS, ONVIF (Profile S, Profile G and Profile T)
- Protection against water and dust IP67
- Power supply via PoE and 12V DC
- Power consumption up to 4.0 watts
- Camera dimensions 155.9 x 63.1 x 62.7 mm
Technical data
- Camera type
- IP outdoor camera
- Image sensor
- 1/3" progressive scan CMOS
- Resolution
- 4.0 Megapixels
- Aspect ratio
- 16:10
- Active pixels
- 2688 (H) x 1520 (V)
- Frame rate
- 25 fps at 2688 x 1520p; 25 fps at 2560 x 1440p; 25 fps at 2304 x 1296p; 25 fps at 1920 x 1080p
- Resolution scaling
- 2688 x 1520p (main stream) to 352 x 288p (third stream)
- Image compression method
- Ultra 265, H.265, H.264, MJPEG
- H.264 code profile
- Baseline profile, Main profile, High profile
- Minimum illumination
- Color: 0.002 lux (F1.2, AGC on), B/W: 0 lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD LEDs, auto/manual
- IR LED technology
- 850nm, Advanced IR, NightHawk
- Illumination range
- 40 meters
- Dynamic range
- 56dB
- Dynamic range (WDR on)
- 120dB
- Lens
- 2.8mm
- Lens type
- Day/night lens (IR)
- Viewing angle
- 101.1° (horizontal), 55.3° (vertical)
- OSD menu
- Web interface, CMS, and network video recorder
- Camera title
- Supported
- Day/night
- Auto (ICR) / Day / Night / Disabled
- Overexposure protection
- Smart IR
- Backlight compensation
- BLC
- Highlight compensation
- HLC
- Wide Dynamic Range
- WDR 120dB
- Noise reduction
- 2D-DNR / 3D-DNR
- Low light amplification
- Supported
- White balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain control
- AGC
- Anti-fog
- Digital anti-fog
- Mirroring
- Normal / Vertical / Horizontal / 180° / 90° clockwise / 90° counter-clockwise
- Motion detection
- 4x motion detection zones
- Electronic shutter speed
- Auto / Manual (1 ~ 1/100,000s)
- Privacy masking
- 4x privacy zones
- Region of interest
- 8x ROI zones
- Tamper alarm
- Supported
- Intelligent video analysis
- Based on target classification, intelligent intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc. Precise focus on humans and/or motor vehicles/cars and non-motorized vehicles
- Video Content Analysis
- Line crossing detection, intrusion, area entering, area leaving
- Basic Event Detection
- Motion detection, tamper alarm, audio detection
- Smart Detection
- Intelligent perimeter protection, including line crossing, intrusion, area entering and leaving detection
- Behavior analysis
- People counting, support for counting people flows and monitoring crowds
- Email notification
- Supported
- Video streaming
- Main stream: 4MP @ 25fps; 3MP @ 25fps; 1080P @ 30/25fps; Sub stream: 720P @ 30fps; D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps; Third stream: D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps
- Streaming method
- Unicast / Multicast
- Streaming protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Peer-to-Peer
- Cloud P2P
- User access
- 5 or more simultaneous user accesses
- Web viewer
- Plug-in required for live view: IE9+, Chrome 41 and lower, Firefox 52 and lower; Plug-in-free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Security
- Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Additional camera features
- Support for 9:16 corridor mode, pre-alarm + post-alarm, mirror, rotate
- Languages
- German, English, French, Turkish, etc.
- Housing color
- White
- Camera orientation
- 3-axis (wall and ceiling mounting)
- Adjustment angle
- Pan 0° ~ 360°; tilt 0° ~ 90°; rotate 0° ~ 360°
- Memory card
- Up to 256GB microSD card
- Data storage on NAS
- ANR, NAS (NFS)
- Interface standard
- ONVIF (Profile S, Profile G, Profile T), API, SDK
- Microphone
- Built-in microphone
- 2-way audio communication
- Supported
- Audio compression
- G.711
- Audio bitrate
- 8kHz
- Network
- RJ-45 (10/100M Ethernet interface)
- Surge protection
- 4kV
- Protection class
- IP67
- Operating temperature / humidity
- -30°C to +60°C / 0% to 95% (non-condensing)
- Power supply
- 12V DC or PoE (IEEE 802.3af compatible)
- Power consumption
- Max. 4.0 watts
- Dimensions
- 155.9 x 63.1 x 62.7 mm
- Weight
- 430g
What is included
- BALTER X PRO NightHawk IP Outdoor Camera with 4.0MP, 2.8mm, 40m Night Vision, Ultra Low Light, WDR 120dB, Deep Learning AI, Smart Behavior Analysis, PoE/12V DC, IP67 - IP-T17IRP
- Allen key
- Screw/anchor set
- User manual / Quick guide
