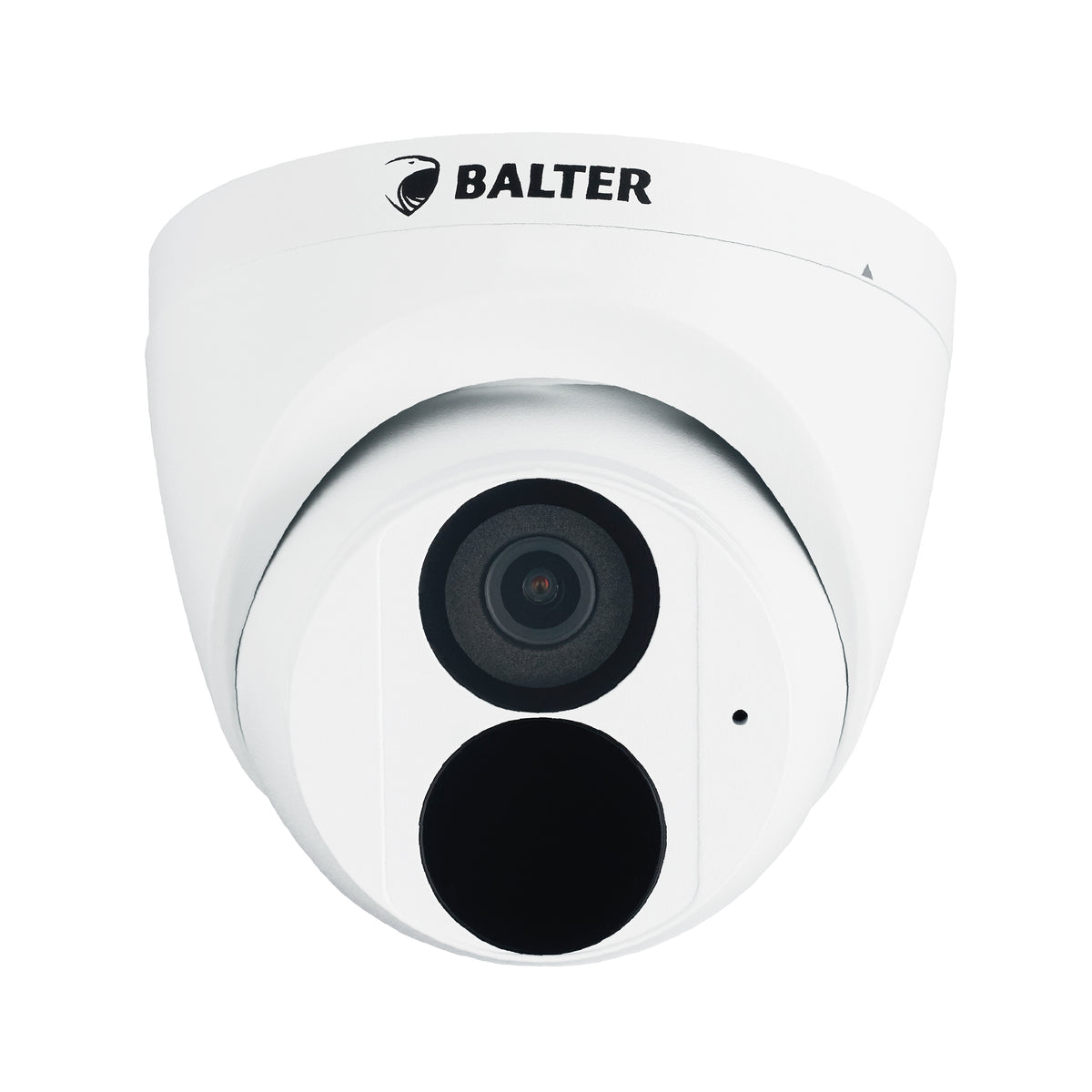

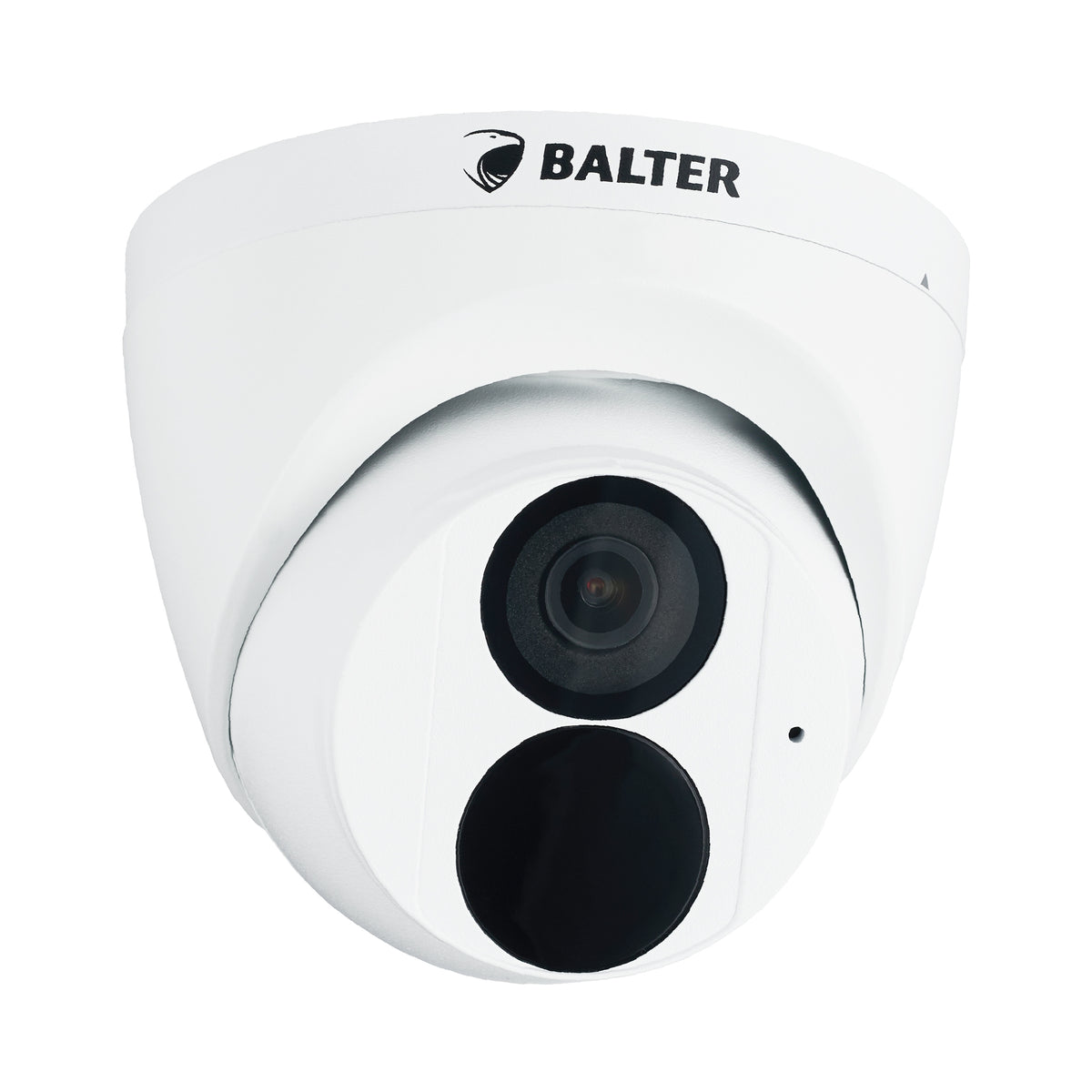

BALTER X PRO NightHawk IP Eyeball Camera with 4.0MP, 2.8mm lens, 30m night vision, Ultra Low Light, 120dB WDR, Deep Learning AI, microphone, PoE/12V DC, IP67
Item number IP-E22IRP
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Designed in Germany
If you have any questions, you are always welcome to contact us. We will get back to you as soon as possible, within 24 hours on weekdays.
-
Versandinformationen
Use this text to answer questions in as much detail as possible for your customers.
-
Kundensupport
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Key details at a glance
- 4.0MP (2688x1520p)
- 4.0MP (2688x1520p)
- 2.8mm wide-angle
- 2.8mm wide-angle
- 1/3" CMOS
- 1/3" CMOS
- 25fps @ 4.0MP
- 25fps @ 4.0MP
- Night vision up to 30m
- Night vision up to 30m
- WDR 120dB, Cloud P2P
- WDR 120dB, Cloud P2P
Description
BALTER X PRO NightHawk 4.0MP IP Eyeball Camera, 2.8mm, 30m Night Vision, WDR 120dB, Deep Learning AI
- IP Eyeball camera with 4.0MP resolution
- 2.8mm wide-angle lens
- Night vision range up to 30 meters
- NightHawk - Ultra Low Light, 1/3" StarLight sensor
- Wide Dynamic Range (WDR) 120dB
- Support for Ultra 265, H.265, H.264, and MJPEG video formats
- Frame rate at 4.0MP resolution: 2688 x 1520p @ 25fps
- Frame rate at 2.0MP resolution: 1920 x 1080p @ 25fps
- Multi-language OSD menu (German, English, etc.)
- Simple setup via Cloud P2P (QR code)
- 4x privacy zones, 4x motion detection zones
- 8x Region of Interest (ROI) zones, schedule, e-mail notifications
- 3D and 2D digital noise reduction, flip, Smart IR
- WebViewer, iOS + Android apps, PC + MacOS CMS
- Smart behavior analysis and identification:
- Intelligent perimeter protection, including detection of line crossing, intrusion, entering and exiting areas
- Based on target classification, intelligent intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc.
- Precise focusing on humans and/or motor vehicles/cars and non-motorized vehicles
- Detection of line crossing, intrusion, entering area, exiting area
- Motion detection, tampering alarm, audio detection
- 2-way audio transmission (bidirectional)
- Built-in microphone, G.711 audio compression
- microSD card slot up to 256GB
- ANR, ONVIF (Profile S, Profile G, and Profile T)
- Protection against water and dust IP67
- Power supply via PoE and 12V DC
- Power consumption up to 4 watts
- Camera dimensions Φ110.5 x 94.1mm
Technical data
- Camera Type
- IP Eyeball Camera
- Image Sensor
- 1/3" progressive scan CMOS
- Resolution
- 4.0 Megapixel
- Aspect Ratio
- 16:10
- Active Pixels
- 2688 (H) x 1520 (V)
- Frame Rate
- 25 fps at 2688 x 1520p; 25 fps at 2560 x 1440p; 25 fps at 2304 x 1296p; 25 fps at 1920 x 1080p
- Resolution Scaling
- 2688 x 1520p (Main Stream) to 352 x 288p (Third Stream)
- Video Compression Method
- Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile
- Baseline profile, Main profile, High profile
- Minimum Illumination
- Color: 0.003Lux (F1.6, AGC on), B/W: 0Lux (IR LEDs on)
- Infrared LEDs
- Infrared SMD LEDs, Auto / Manual
- IR LED Technology
- 850nm, Advanced IR, NightHawk
- Illumination Range
- 30 meters
- Dynamic Range
- 56dB
- Dynamic Range (WDR on)
- 120dB
- Lens
- 2.8mm
- Lens Type
- Day/Night (IR)
- Angle of View
- 101.1° (horizontal), 55.3° (vertical)
- On-Screen Menu
- Web interface, CMS and Network Video Recorder
- Camera Title
- Supported
- Day/Night
- Auto (ICR) / Day / Night / Disabled
- Overexposure Protection
- Smart IR
- Backlight Compensation
- BLC
- Highlight Compensation
- HLC
- Wide Dynamic Range
- WDR 120dB
- Noise Reduction
- 2D-DNR / 3D-DNR
- Low Light Enhancement
- Supported
- White Balance
- Auto / Outdoor / Fine tune / Sodium / Locked / Auto2
- Gain Control
- AGC
- Defog
- Digital defog
- Mirror
- Normal / Vertical / Horizontal / 180° / 90° clockwise / 90° counter-clockwise
- Dewarping
- Supported
- Motion Detection
- 4x zones motion detection
- Electronic Shutter
- Auto / Manual (1 ~ 1/100,000s)
- Privacy Masking
- 4x privacy zones
- Region of Interest
- 8x zones ROI
- Tampering Alarm
- Supported
- Intelligent Video Analytics
- Based on target classification, the smart intrusion prevention significantly reduces false alarms caused by foliage, birds, lights, etc. Precise focus on humans and/or motor vehicles/cars and non-motorized vehicles
- Video Content Analysis
- Line crossing, intrusion, area entry, area exit detection
- Basic Event Detection
- Motion detection, tampering alarm, audio detection
- Smart Detection
- Intelligent perimeter protection, including line crossing, intrusion, area entry, and area exit detection
- Email Notification
- Supported
- Event Rules
- Main Stream: 4MP @ 25fps; 3MP @ 25fps; 1080P @ 30/25fps; Sub Stream: 720P @ 30fps; D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps; Third Stream: D1 @ 30fps; 4CIF @ 30fps; 2CIF @ 30fps; CIF @ 30fps
- Streaming Method
- Unicast / Multicast
- Streaming Protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Peer-to-Peer
- Cloud P2P
- User Access
- 5 and more simultaneous user accesses
- WebViewer
- Plug-in required for live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in-free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Security
- Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
- Other Camera Features
- Support for 9:16 corridor mode, pre-alarm + post-alarm, mirror, rotate
- Languages
- German, English, French, Turkish, etc.
- Housing Color
- White
- Camera Orientation
- 3-axis (wall and ceiling mount)
- Adjustment Angle
- Pan 0° ~ 360°; Tilt 0° ~ 80°; Rotate 0° ~ 360°
- Memory Card
- Up to 256GB microSD card
- NAS Storage
- ANR
- Interface Standard
- ONVIF (Profile S, Profile G, Profile T), API
- Microphone
- Built-in microphone
- Audio Compression
- G.711
- Audio Bitrate
- 8KHZ
- Network
- RJ-45 (10/100M Ethernet interface)
- Surge Protection
- 2KV
- Protection Class
- IP67
- Operating Temperature / Humidity
- -30°C to +60°C / 0% to 95% (non-condensing)
- Power Supply
- 12V DC or PoE (IEEE 802.3af compatible)
- Power Consumption
- Max. 4 Watt
- Dimensions
- Φ110.5 x 94.1 mm
- Weight
- 420g
What is included
- BALTER X PRO NightHawk IP Eyeball Camera with 4.0MP, 2.8mm lens, 30m night vision, Ultra Low Light, 120dB WDR, Deep Learning AI, microphone, PoE/12V DC, IP67 - IP-E22IRP
- Mounting template
- Allen key
- Screw set
- Quick guide
